MACKIE 1604 VLZ3 มิกเซอร์ 16 Channel,2 stereo,4 Aux sends,4 Stereo Aux return.8 direct outs,4 Group/bus out. |
|---|
| • | New ultra-low noise VLZ3 design with highest possible headroom | | • | 16 studio-grade XDR2™ Extended Dynamic Range mic preamps with:
- Ultra-wide 60dB gain range
- 130dB dynamic range
- +22dBu line input handling
- Extended low frequency response
- Distortion under 0.0007% (20Hz - 20kHz)
- Phantom power for studio condenser mics | | • | 16 high-headroom line inputs, 16 channel inserts | | • | Advanced DC pulse transformer RF rejection | | • | 60mm long-wearing logarithmic-taper faders | | • | 4 Aux sends, level, pan, -20dB/Solo and Overload/Mute_LEDs on each channel | | • | 4 stereo Aux returns, 8 Direct outs, 4 Group/Bus outputs | | • | 3-band Active EQ with sweepable midrange | | • | 18dB/oct. 75Hz Lo-Cut filter | | • | Control Room/Phones multi-input source matrix | | • | Balanced 1/4" inputs and outputs (except inserts) | | • | Rack-mountable design with three physical configurations via rotating I/O pod | | • | Sealed rotary controls to resist dust and grime | | • | New Multi-Voltage power supply for worldwide use | | • | Rugged steel chassis |
| | | | | | | A Legend, Perfected.

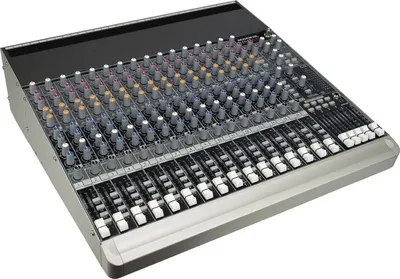

How do you improve on perfection? The Mackie 1604-VLZ Pro has been the long-running favorite of audio professionals the world over for its sound quality, ease of use, and rugged dependability. Thousands of recordings have been tracked and mixed solely on a 1604. Designing a mixer to take its place was a tremendous challenge, indeed. But our engineering team thrives on this kind of stuff, so they tackled this one head on, creating one of the best compact mixers we’ve ever offered: the Mackie 1604-VLZ3.
While keeping the features and functionality of its predecessor, the Mackie 1604-VLZ3 offers even greater headroom than the original. We could have stopped right then and there, but we’re obsessed with perfection. So we redesigned the Mix Bus and made a few circuitry upgrades to the EQ, giving the 1604-VLZ3 a highly intuitive, more musical feel. Whether you need a live mixing board for club work, or a full-featured workhorse for home and studio recording, you owe it to yourself to check out the new Mackie 1604-VLZ3. You’ll think it’s perfect, too.
VASTLY SUPERIOR XDR2™ MIC PREAMPS
Our new XDR2 (Extended Dynamic Range) second-generation mic preamps are better than ever. They offer incredibly low noise, with individual mic pre THD below 0.0007%, and overall mixer THD less than 0.0025%. With 60dB of available gain per channel, the 1604-VLZ3 can handle inputs ranging from a whisper to a scream, and can even handle hot line-level signals up to +22db, without any added coloration. You simply won’t find preamps this good on any other mixer in this price range.
PROFESSIONAL FEATURES
Don't let its size fool you. The Mackie 1604-VLZ3 mixer is packed with premium features on every channel; 75Hz Low-Cut filters, four Aux Sends, inserts, phantom power, constant-loudness Pan controls, OL (overload) and signal present LEDs, sub and main mix assign switches, and assignable AFL/PFL Solo switch. And since you can never have too many output options, we provided a Control Room/Phones source matrix, Master Aux section with EFX to Monitor, tape outputs, high-volume headphone amplifier, channels 1-8 direct outs, and balanced XLR and balanced/unbalanced TRS outputs. |
|
