NEXO GEO S1210

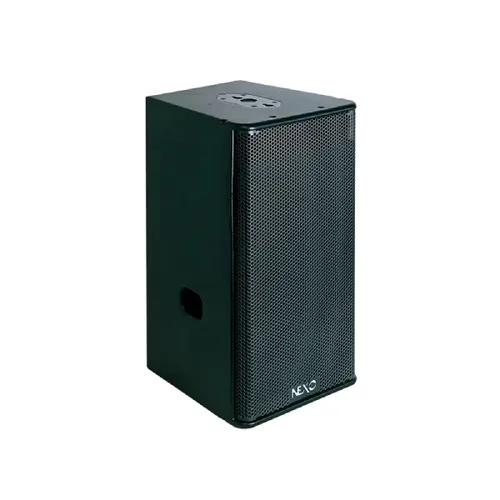

NEXO GEO S1210 ลำโพง Scalable Loudspeaker Module

The compact, 2-way GEO S1210 is a scalable loudspeaker module that displays exceptional MF-LF output (103dBSPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A very narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional

Coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software. Non-coupled MF/HF coverage is adjustable, via NEXO’s patented Configurable Directivity Device (CDD) flanges, at either 80° or 120°. Comprehensive hardware accessories, for both fixed and mobile systems, optimize inter-cabinet angles and rigging. NEXO’s NXAMP TDcontroller maximizes S1210’s MF/HF coherency while providing EtherSound network control.

Features

• Coherent Wave Propagation from NEXO’s
• Advanced Constant Velocity Profile Output from 5.1° Wavefront Curvature
• Integral Rigging System with Angles from 0.20° to 10°
• NS-1 Configurable
• Bottom-Line Engineering for Theatre to
• Arena-Sized Fixed & Mobile Applications
