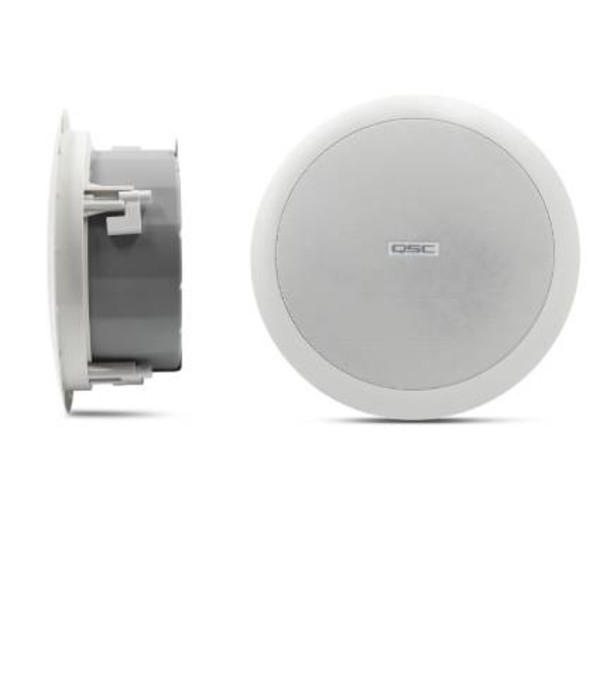

QSC AC-C2T-LP | ลำโพงติดเพดาน 2 ทาง 2.75 นิ้ว

 โพสต์เมื่อ : 25 พ.ย 2567 เวลา 0:50 น.
2

2

รหัส : AC-C2T-LP
ยี่ห้อ : QSC
รุ่น : QSC AC-C2T-LP
ราคาปกติ :  4,800.00 บาท
ราคาพิเศษ :  4,560.00บาท
รายละเอียดย่อ :
2.75" Full-range low profile ceiling speaker, 70/100V transformer with 8Ω bypass, 170° conical coverage, includes C-ring and tile rails for blind mount installation.
Priced individually, sold only in pairs.

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

Key Features

  • Low-profile enclosure ensures no obstructions during installation
  • High-quality 2.75" full-range transducer provides a natural rise in high frequency extension
  • Ported baffle for increased low frequency extension down to 75 Hz
  • Low saturation 70 / 100 V transformers with 8 Ω bypass
  • 4 pole Euroblock connector eases system wiring
  • Intrinsic Correction™ voicings available via Q-SYS Platform
  • White (RAL 9010)
  • Complete EASE, CAD & BIM information available online



System Details



Transducer

2.75 in (70 mm), weather-treated paper cone

Effective frequency range

70 Hz to 20 kHz

Broad-band sensitivity

84 dB

Rated noise power/voltage

16 W / 11.3 V RMS

Coverage angle (-6 dB)

170° (500 Hz to 5 kHz)

Maximum SPL (continuous / peak)

96 / 102 dB

Rated impedance

8 Ω

Transformer taps

Bypass: 16 Ω
70 V: 16, 8, 4, 2, 1 W and 8 Ω bypass
100 V: 16, 8, 4, 2, W and 8 Ω bypass

Input connector type

Euroblock connector with parallel output terminals

Baffle material

ABS polymer

Grille material

Powder coated steel

Back can material

Powder coated steel

Net weight

4.2 lb (1.9 kg)

Product dimensions

10.35 x 3.82 in (263 x 97 mm)

Cut-out dimensions

9 in (229 mm)

Ceiling capture thickness

0.25 - 1.5 in (6.35 - 38.1 mm)

Shipping weight

13.8 lb (6.3 kg)

Shipping dimensions (W x D x H)

25.2 x 14.2 x 7.2 in
(641 x 362 x 184 mm)

Included accessories

Rails & C-ring for ceiling tile installation

Optional accessories

AC-MR6 mud ring for sheet rock installation
