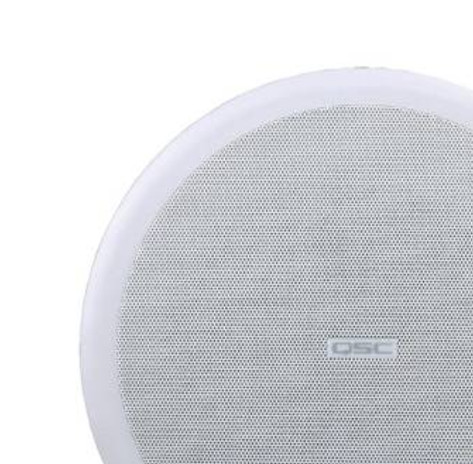

QSC AC-C8T ลำโพงติดเพดาน 8" Two-way ceiling speaker, 70/100V transformer with 8Ω bypass, 90° conical coverage, includes C-ring and rails for blind mount installation. Priced individually but must be purchased in pairs.

Feature.

High quality transducers provide exceptional clarity through the critical voice range.

Improved musicality often not seen in typical BGM class products.

Ported baffle for increased low frequency extension down to 52 Hz.

Low saturation 70/100V transformers with 8 ohm bypass.

4-pole Euroblock connector eases system wiring.

Advanced voicing via QSC Intrinsic Correction™, applied using the Q-SYS networking platform or CXD Series Amplifiers.

White (RAL 9010) with UV inhibitors to match complimenting QSC product families.

Complete EASE, CF2, CAD, & BIM information available online.

Specifications

AC-C8T

Effective frequency range 52 Hz – 20 kHz

Rated noise power / voltage 80 watts / 25.3 volts (rms)

Broad-band sensitivity 89 dB SPL

Coverage angle (-6 dB) 100° (500 Hz to 5 kHz)

Maximum continuous SPL 108 dB

Maximum peak SPL 114 dB

Rated impedance 8 ohms

Transformer taps:

70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass

100V: 60, 30, 15, 7.5 watts and 8-ohm bypass

HF Transducer 22 mm [.86 in] silk dome tweeter, coaxially mounted

LF Transducer 210 mm [8 in] Polypropylene cone with butyl rubber surround

Input connector type Euroblock connector with parallel output terminals

Baffle material Painted ABS polymer

Grille material Painted steel

Back can material Plated steel

Testing Listed UL1480, UL2043 safe for use in air handling space

Net weight 5.2 kg [11.5 lb]

Product dimensions Ø316 x 288 mm [Ø12.4 x 11.3 in]

Cut-out Dimensions Ø285 mm [Ø11.2 in]

Ceiling Capture Thickness 6 - 38 mm [0.25 - 1.5 in]

Shipping weight 13.3 kg  [29.3 lb]  (pair packed)

Shipping dimensions 743 x 381 x 381 mm  [29.3 x 15 x 15 in]

Included accessories Rails & C-ring for ceiling tile installation
