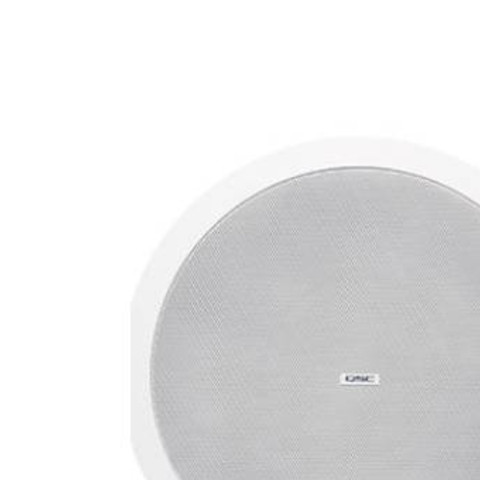

QSC AD-C.SUB-WH ลำโพงติดเพดาน 6.5 นิ้ว 100 วัตต์

 โพสต์เมื่อ : 25 พ.ย 2567 เวลา 0:50 น.
15

15

รหัส : AD-C.SUB-WH
ยี่ห้อ : QSC
รุ่น : QSC AD-C.SUB-WH
ราคาปกติ :  20,000.00 บาท
ราคาพิเศษ :  19,000.00บาท
รายละเอียดย่อ :
6.5" Dual voice-coil ceiling subwoofer, provides High-pass output for up to four (4) satellite speakers, 70/100V transformer with 4Ω bypass, includes C-ring and Tile rails for blind mount installation. Color - White.

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

Features

  • Dual voice-coil for improved thermal dissipation and higher output
  • Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
  • 4x built-in high-pass filtered outputs
  • Snap-fit magnetic grills
  • Locking 4-pole Euroblock connectors
  • Removable conduit cover plate
  • 4x double stepped, long travel dog-ear blind mount system
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
  • Available in black (RAL 9011) or white (RAL 9010)
  • UL1480 and UL2043 certified



SpecificationAD-C.SUB
LF transducer6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
HF transducerN/A
Effective frequency range45 Hz – 150 Hz
Rated noise power / voltage100 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)		86
Coverage (‐6 dB)Omni
Directivity factorTBD
Directivity index [dB]TBD
Maximum SPL [dB]
(continuous / peak)		100 / 106
Recommended amplifier100 W
Transformer taps / impedance

Bypass: 4 Ω

100 W (70 V); NA (100 V) Tap: 50 Ω

50 W (70 V); 100 W (100 V) Tap: 100 Ω

25 W (70 V); 50 W (100 V) Tap: 200 Ω

12.5 W (70 V); 25 W (100 V) Tap: 400 Ω

ConnectorsMono input: 4-pole Euroblock with thru output
Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
Enclosure materialABS baffle on powder coated steel back can
Grill materialPowder coated steel
Ingress protectionIP-34
Operating environmentDesigned for indoor use
Operating temperature range-4 to 122° F (-20 to 50° C)
Net weight19.2 lb (8.7 kg)
Product dimensions
(Ø x H)		Ø 13.4 x 10-inch (Ø 340 x 254 mm)
Shipping weightTBD
Shipping dimensions
(H x W x D)		TBD
Included accessoriesC-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill
Safety agency

UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant.
Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
