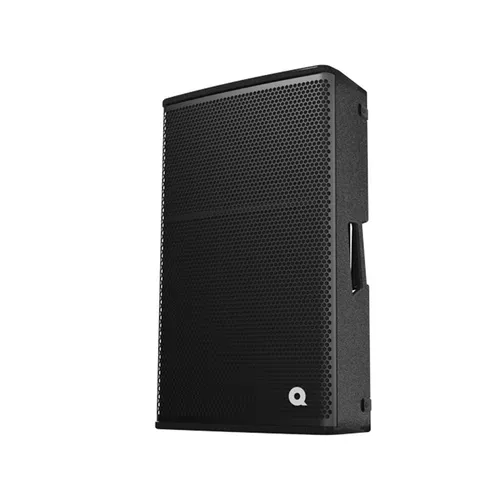

QUEST QM700 ลำโพง 2 Way - High power 15" + 2" multipurpose cabinet

The QM700 is a high powered 15" passive two way multi-purpose loudspeaker built for heavy duty applications in demanding environments.

The QM700 is a very versatile high performance speaker system and professionals everywhere quickly appreciate the high end industrial and acoustical engineering at the core of its design.  The QM700 is equally at home as a big stage high powered fold-back monitor, full range front of house or as the high-mid component of a multi way system with LF enhancement.

The QM700 has a number of design innovations, starting with the Quest asymmetrical rotatable wave guide. The driver/wave-guide combination focuses the acoustic energy to provide smooth near field coverage while maximising performance and imaging in the far field, without contributing to room reflections; all done without additional system processing. Pronounced and intelligible vocal clarity in difficult acoustical environments is achieved as both a fold-back monitor or as a front of house system. Further horn rotation can achieve the same result when the QM700 is used horizontally.

Specifications

Yes, we know, everyone has them, but ours are the real deal. Every specification we report has been concluded by our extensive tests and is real-world accurate. There are no theoretical numbers or heavily “smoothing curve” contoured response graphs; there is nothing to hide and everything to boast.

Power Handling700W program ; 1400W peak

Frequency Response50-16kHz

Sensitivity98dB @ 1kHz

Maximum SPL @ 1m130dB

Impedance8 ohms

Connections and Wiring 2 x Speakon NL4 - 1+/1- (2+/2- through)

Woofer 15" High Power Woofer

Tweeter 1.4" Ferrite Compression Driver

DirectivityAsymmetric +15/-45 ; 30/45 horizontal

Dimensions725 x 432 x 369.5 mm

Weight28kg Net
