RCF C5215-64 ลำโพงวูฟเฟอร์ 15 นิ้ว, เสียงแหลม 2 นิ้ว Two-Way Passive Speaker 15"

 มุมการกระจายเสียง 60x40 องศา

- ลำโพงสองทาง

- ลำโพงวูฟเฟอร์ 15 นิ้ว, เสียงแหลม 2 นิ้ว

- ทนกำลังขับสูงสุด 2000 วัตต์

- การตอบสนองความถี่ 48Hz - 20kHz

รายละเอียด :

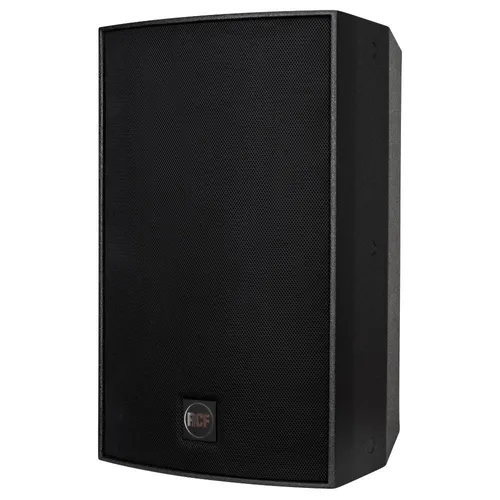

RCF C5215-64 Two-Way Passive Speaker 15"

The C5215-64 is a full range extremely versatile controlled narrow dispersion two-way loudspeaker system for medium throw applications.

The high-frequency section is a constant directivity horn loaded to a 2” neodymium compression driver with a 2.5” diaphragm assembly for smooth, controlled dispersion.

The 60° x 40° horn design offers higher sensitivity for longer distance applications. The low-frequency transducer is a 15” woofer with a 3” voice coil.

The crossover is easily bypassed for bi-amp via a recessed changeover switch.

Features :

60° x 40° CMD (Coverage Matching Design) constant directivity horn

2" compression driver with 2,5" diaphragm assembly

15" woofer with 3" voice coil

Dual-function design: built in passive crossover or external bi-amp

Rotatable Horn System for horizontal cabinet mounting applications

HF driver AMCDP (Active Mosfet Compression Driver Protection)

LICC (Low Impedance Compensated Crossover) network

14 Suspension points (M10)

35 mm standard internal pole mount

Specifications :

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB : 48 Hz ÷ 20000 Hz

Max SPL @ 1m : 134 dB

Horizontal coverage angle : 60°

Vertical coverage angle : 40°

Directivity index; Q : 20

System Sensitivity : 101 dB

Nominal Impedance : 8 Ω

Power Handling : 500 W

Peak Power Handling : 2000 W

Recommended Amplifier : 1000 W

Protections : Dynamic

Crossover frequencies : 1200 Hz

TRANSDUCERS

Compression Driver : 2" HF driver, 2.5" voice coil

Nominal Impedance : 8 Ω

Input Power Rating : 100 W AES

Sensitivity : 111 dB

Woofer : 15" woofer, 3" voice coil

Nominal Impedance : 8 Ω

Input Power Rating : 400 W AES

Sensitivity : 99 dB

INPUT SECTION

Input connector : Speakon NL4 - Full range or Bi-Amp

Output connector : Speakon NL4

CABINET

Cabinet Material : 15 mm birch plywood construction

Hardware : 14 x M10 inserts

Pole Mount/Cap : 1 top, 1 bottom

Grille : custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth

Colour : Black

PHYSICAL SPECIFICATIONS

Height : 695 / 27.36 mm/inch

Width : 430 / 16.93 mm/inch

Depth : 460 / 18.11 mm/inch

Net Weight : 34.8 / 76.72 kg/lbs
