RCF PL80 /A

 โพสต์เมื่อ : 25 พ.ย 2567 เวลา 0:50 น.
9

9



รหัส : PL80 /A
ยี่ห้อ : RCF
รุ่น : PL80 /A
ราคาปกติ :  3,710.00 บาท
ราคาพิเศษ :  3,150.00บาท
รายละเอียดย่อ :
Ceiling speaker 200 mm 6/15 W

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

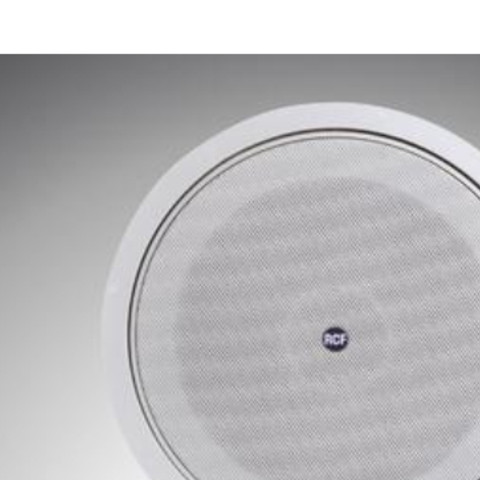

RCF PL80 /A Ceiling speaker 200 mm 6/15 W



Overhead speaker fo false ceiling installation. The PL 80/A is designed for distributed sound reproduction in large spaces with low to medium low ceilings. The A 1380 protection can be fitted when required by safety regulations.


- Body in RAL 9003 white plastic.
- Multi-tapped line transformer included for constant voltage systems.
- Twin-cone, wide band, low distortion Ø 200 mm loudspeaker.
- Quick fitting of the holder ring and easy bayonet hooking system.
- Flame-retardant white plastic body meets UL-94-5VA standards.



PL 80/A Ceiling speaker

SPECIFICATIONS

TypeCeiling speaker with transformer
Installation systemFlush-mounted
Nominal/maximum power6/15 W (6 - 3 - 1,5 - 0,75 - 0,37 W)
Constant voltage100 - 50 V
Impedance4 ?
Frequency response40÷18.000 Hz
Sensitivity93 dB (1W/1m)
Maximum sound pressure101/105 dB (1 m/max. power)
Angle of coverage[1.000 Hz]: 180° - [2.000 Hz]: 100°
DimensionsØ 266x100 mm.
Maximum protrusion3 mm.
Flush-mounting holeØ 244 mm.
Weight1,7 Kg.
Accessories includedAttachment brackets. Nylon safety wire for facilitating connections
Optional accessoriesReplacement loudspeaker A 1380 Fire guard
Speaker8
Protection level-
Connectors-
