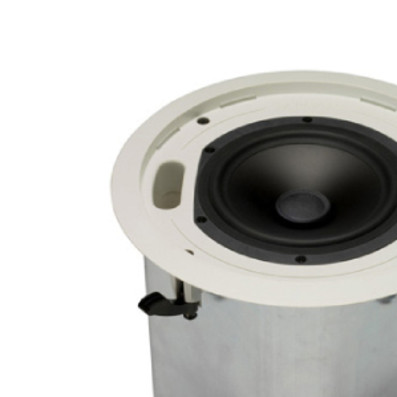

TANNOY CMS601DCBM ลำโพงติดเพดาน ceiling monitor system

The Tannoy CMS 601DC is a full bandwidth; high power and high sensitivity ceiling monitor
system. The 165mm (6.50") Tannoy Dual Concentric is a point source drive unit design
comprising a multi fibre paper pulp mid bass cone and a 25mm (1.00") ferrofluid cooled, titanium
dome HF unit with neodymium magnet system. The driver and passive frequency dividing
network are mounted in a vented, injection moulded, paintable front baffle manufactured from
UV/weather resistant UL94V-0 ABS material.
The mid-bass and tweeter sections of the Tannoy Dual Concentric constant directivity driver are
coincidentally aligned to a true point source; ensuring a wide and controlled dispersion for
optimum coverage; this while avoiding the massive loss of energy in the vertical plane, at the
crossover frequency, inherent in two-way discreet designs. This high power and high sensitivity
design, with extended frequency response and very low distortion, is equipped with dynamic high
frequency protection.
This compact unit is specifically designed for applications requiring the combination of premium
sonic quality for music and speech reinforcement and exceptional reliability and intelligibility.
The CMS 601DC BM is equipped with a low insertion loss 60W line transformer easily
configurable to the following settings via front baffle mounted rotary tapping switch:
70V systems: 60W / 30W / 15W / 7.5W / OFF & low Impedance operation
100V systems: 60W / 30W / 15W / OFF & low Impedance operation

Specification
