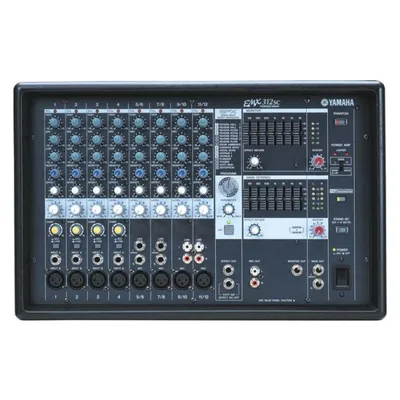

YAMAHA EMX312SC

YAMAHA  EMX312SC เพาเวอร์มิกเซอร์ 12 Ch. Power Mixer stereo mixer featuring 8 XLR channels. 600 W 4 of these channels are also stereo channels.

EMX312SC is a 600w, 12-channel powered stereo mixer featuring 8 XLR channels. 4 of these channels are also stereo channels.  มิกเซอร์

With the power for mid-to-large venues 300 watts + 300 watts and the added advantage of one-knob compression on mono channels, the Yamaha EMX312SC may be the model you need. In one integrated, portable unit the EMX 312SC offers a range of features that let you mix, process, and deliver your sound with maximum quality and creative control.

Integrated Solutions for Superior Live Sound

Experienced musicians, performers, speakers, and club operators know the importance of a high-quality sound system with the right features and performance to deliver their sound. Where portability and convenience are important criteria, a system based on a high-performance Yamaha EMX-series powered mixer is definitely the way to go. In one integrated, portable unit you have a mixer to combine and balance your microphone and instrument and line sources, effects to refine and polish your sound, and power to drive the main speakers and even monitor speakers as well. But that's nowhere near the whole story - Yamaha EMX-series Powered Mixers offer a range of features that let you mix, process, and deliver your sound with maximum quality and creative control … and, of course, that unrivalled Yamaha sound.

SPECIFICATION

• Model EMX512SC EMX312SC EMX212S
• Maximum output power
• 1kHz, THD+N≤0.5% 4ohms 500W+500W 300W+300W 220W+220W
• 8ohms/AC120V model
• 8ohms/AC220-240V model 350W+350W
• 320W+320W 190W+190W
• 180W+180W 130W+130W
• 130W+130W
• Total harmonic distortion Less than 0.5%, +14dBu@ 20Hz-20kHz
• Frequency response
•  0, -3, +1dB, 20Hz-20kHz, 0dB@1kHz
• Equivalent input noise
• 20Hz-20kHz -115dBu
• Crosstalk/1kHz -65dB
• Phantom voltage +15V, CH1-4:INPUT B, CH5/6-11/12:MIC
• CH&ST CH equalizer
• ±15dB maximum HIGH 10kHz (Shelving)
• MID 2.5kHz (Peaking)
• LOW 100Hz (Shelving)
• Effect 16 program, Parameter control
• FOOT SW (ON/OFF)
• Levelmeter 2x5 point LEDlevel meter[MAIN(L,R)]
• 5 point LED level meter [MONITOR]
• FCL Sensitivity Input signal level≥-75dBu: LED on
• CH1-4 MIC/LINE:MIC B Input, CH5/6-11/12 MIC Input
• Protection Power Amplifier POWER switch on/off mute
• DC-fault
• Thermal / heatsink temp≥90degrees celsius
• VI limiter / RL≤2ohms
• Clip limiter / THD≥1%, Indicator x 2
• Power supply Thermal / heatsink temp≥100degrees celsius
• Power consumption 550W 450W 350W
• Dimensions W 442.5mm
• H 284mm
• D 264mm
• Weight 8kg
