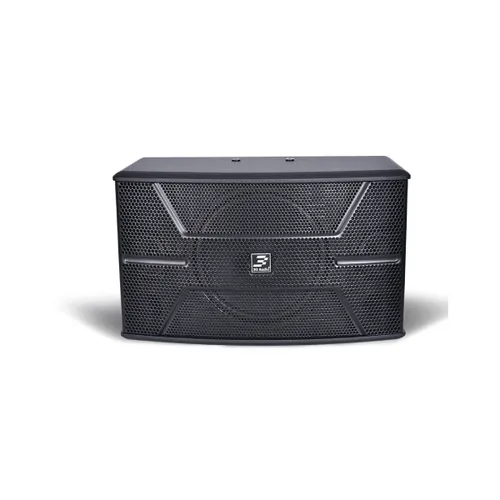

KO-10

10" Built-in Three-way Full Range Speaker

ตู้ลำโพงคาราโอเกะ 10" 2ทาง 150W KO-10 BETA THREE

SYSTEM : 10" Built-In Three-way Full Range Speaker

FREQUENCY RESPONSE (-3dB) : 45Hz - 18KHz

HANDLING POWER : 150Wrms @ 8 OHM

SENSITIVITY (1W/1M) : 93dB, CROSS POINT : 2.8KHz

SPEAKER : Tweeter : 2x3" Paper Cone Driver , Woofer : 1 x 10" LF Transducer

DIMENSIONS (WxDxH) : 498 x 317 x 292 MM. ; N.W. : 9KG.

KO-10 is a three-way full range professional kara- oke speaker. It consists of 1pc powerful 10" woofer and 4pcs paper cone driver. With high SPL and sen- sitivity. The sound is clear and powerful.　

FEATURES

• 2 x 3" Treble
• 1 x 10" powerful woofer
• Frequency Response(-3dB):45Hz-18kHz
• Sensitivity: 93dB
• Rated Power: 150W
• 2 x M8 rigging point

SPECIFICATIONS

• Acoustical specifications
• Frequency Response(-3db):45Hz-18kHz
• Transducers
• Compression driver: 2 x 3" TrebleWoofer:1 x 10" LF
• Input/Output section
• Sensitivity (1W @ 1m): 93dB
• Power section
• Total Power:150WNominal Impedance (Ohm):8Ω
• Physical specifications
• Color:Black
• Size
• Dimension (W x D x H):502 x 278 x 298mm / (19.8 x 10.9 x 11.7in) Package Dimensions (W x D x H): 670 x 375 x 595mm / (26.4 x 14.8 x 23.4in)
• Weight

Net Weight:9 kg / 19.8 lbGross Weight: 24
