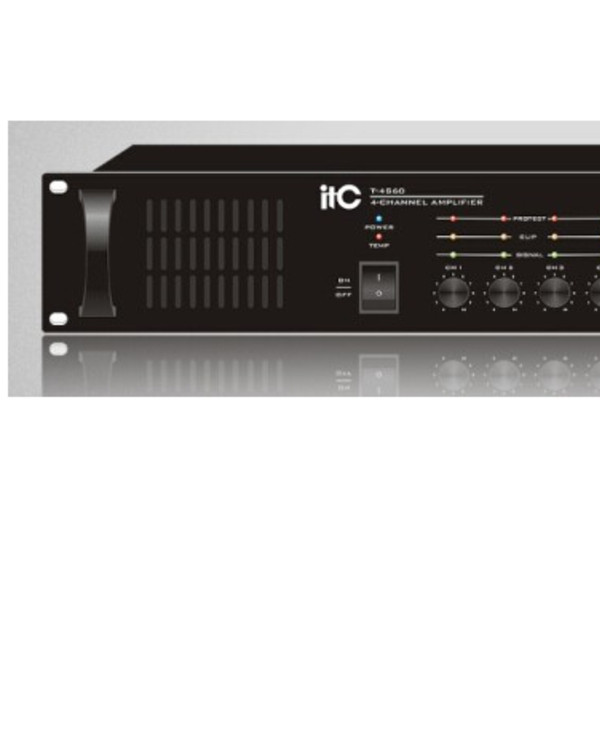

ITC-AUDIO  T-4S120 4 channel power amplifiers are designed for commercial and industrial public address applications

Description

The 4 channel power amplifiers are designed for commercial and industrial public address applications. With four separate amplifier in a single chassis and rated power ranges from 60W,

120W and 240W per channel which provides a wide selection to meet different size sound system needs. The amplifier is design of rack mount type and T-4S60/T-4S120 are in 2U height

while T-4S240 is in 3U height.

Balanced line inputs by phone jack, 70V, 100V and 4-16ohm speaker outputs for each channel by phoenix types are convenient for installation when selection different speaker matching.

Master volume controls for each control are included. Complete protection includes over heat, over load, clip & short circuit. Indications for power, signal, peak and protection.

Features

 4 separate amplifier into one chassis

 Rack mount amplifier in 2U(T-4S60/T-4S120) and 3U(T-4S240) types

 Rated power from 60W, 120W to 240W per channel

 70V, 100V and 4-16ohm speaker outputs for each channel by phoenix types

 Isolated transformer for human safety operation

 Balanced phone jack type line input for each channel

 Reliable protection of over heat, over load, clip & short circuit

 Indications for power, signal, peak, and protection

 Excellent device of radiator cooling fanner that ensures working effectively

Optional

DC 24V input available on less than but not included 240W models

Specifications

ModelT-4S60 T-4S120  T-4S240

Rated Power Output4x60W4x120W4x240W

Speaker Outputs70V, 100V & 4~16Ω

Input Sensitivity & Impedance±385mV/10KΩ, Balanced phone jack type

Overload Electromotive Force＞15dB

Frequency Response50Hz~16KHz(+1dB, -3dB)

S/N Ratio＞90dB

THDLess than 0.1% at 1KHz, 1/3 rated power

Crosstalk＜50dB

CoolingFan automatically start up when temp reaches 55℃

ProtectionOver heat, over load, clip & short circuit

Power Supply~110V/60Hz or ~230V/50Hz or DC 24V

Power Consumption400W720W1500W

Weight16Kg  22Kg30Kg

Dimensions484x448x88mm484x449x132mm

Finish

Panel: aluminum plate

Case: steel plate
