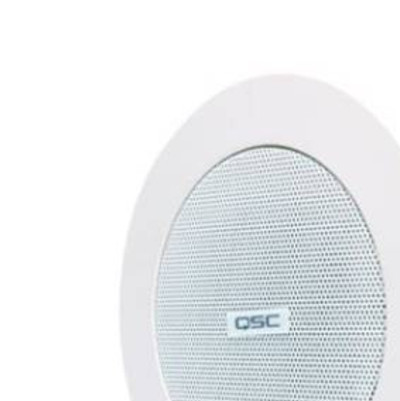

QSC AD-C.SAT-WH ลำโพงติดเพดาน 2.75 นิ้ว 25 วัตต์

 โพสต์เมื่อ : 25 พ.ย 2567 เวลา 0:50 น.
12

12

รหัส : AD-C.SAT-WH
ยี่ห้อ : QSC
รุ่น : QSC AD-C.SAT-WH
ราคาปกติ :  4,300.00 บาท
ราคาพิเศษ :  4,085.00บาท
รายละเอียดย่อ :
2.75" Satellite ceiling speaker, 16Ω, 150° conical coverage, includes C-ring for blind mount installation. Color - White. Priced individually, sold only in pairs.

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

Features

  • Inverted aluminum dome dust cap
  • Rated at 16 Ω
  • Locking 2-pole Euroblock connectors
  • Snap-fit magnetic grills
  • Removable conduit cover plate
  • 2x long travel dog-ear blind mount system
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
  • Available in black (RAL 9011) or white (RAL 9010)
  • UL1480 and UL2043 certified



SpecificationsAD-C.SAT
LF transducerN/A
HF transducer2.75-inch (70 mm) weather treated paper cone woofer
Effective frequency range150 Hz – 20 kHz
Rated noise power / voltage25 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)		82
Coverage (‐6 dB)
170° Conical

Directivity factorTBD
Directivity index [dB]TBD
Maximum SPL [dB]
(continuous / peak)		90 / 96
Recommended amplifier25 W (with 1st order high-pass filter at 200 Hz)
Transformer taps / impedanceBypass: 16 Ω
Connector2-pole Euroblock connectors
Enclosure materialABS baffle on powder coated steel back can
Grille materialPowder coated steel
Ingress protectionIP-34
Operating environmentDesigned for indoor use
Operating temperature range-4 to 122° F (-20 to 50° C)
Cutout dimensionØ 4.5-inch (Ø 115 mm)
Net weight1.39 lb (630 g)
Product dimensions (Ø x H)Ø 5.9 x 3.4-inch (Ø 150 x 86 mm)
Shipping weightTBD (pair packed)
Shipping dimensions
(H x W x D)		TBD (pair packed)
Included accessoriesC-ring, Euroblock connector, cut-out template, grill (pair packed)
Safety agencyUL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces.
Transformer UL registered per UL1876, ROHS, CE compliant.
Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with
IEC60849 / EN60849 systems.
