Special set Si Expression 2 EU + A520.001000SP + MSB-16 cat5

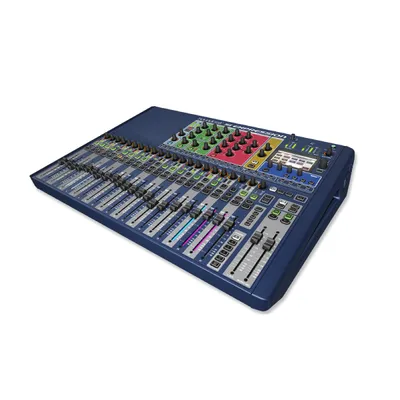

Soundcraft  Si Expression 2 EU

The Soundcraft Si Expression 2 24-channel Digital Mixer leverages cutting-edge DSP, component technology, and manufacturing techniques to deliver awesome mixing power in a compact, amazingly affordable package. The Si Expression 2 gives you 24 recallable mic preamps, four line inputs, four internal stereo FX returns, AES in, and a 64x64 expansion slot that lets you deploy up to 66 input processing channels - each sporting a highpass filter, input delay, gate, compressor, and four-band EQ. Robust automation and connectivity are the icing on the cake. Take your mixing to the next level, with Soundcraft’s Si Expression 2.

 Features:

• 24 mono mic inputs; four line inputs; AES in and out
• Color touch screen interface
• Up to 66 input processing channels
• Pre/Post selection per input, per bus
• Global mode encoders; GEQ on every bus
• Motorized 100mm faders with FaderGlow (illuminates fader slots according to function)
• LR and C Mix busses; 4 FX busses; 8 Matrix busses; 20 sub-group / aux busses
• Four Stereo Lexicon effects engines
• Delay on inputs and outputs; freely assignable insert loops
• Comprehensive automation with four mute groups
• Harman HiQnet integration; 64x64 channel option card slot
• Option cards include AES, Firewire/USB/ADAT, AVIOM, CobraNet, BSS BLU Link, Dante, optical MADI

A520.005000SP

The MADI I/O card can establish a 64-channel MADI input and output to a remote device such as stage rack, another console or Broadcast feed to an OB. Optical inputs and outputs are provided on SC connectors available in multi-mode versions only. The auxiliary interface can be used as a redundant link. A Cat5 version of the card is also available. A toggle switch allows the card to be switched from 64ch to 56ch mode for compatibility with older MADI devices.

MSB-16

The new Mini Stagebox range from Harman’s Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

Mini Stagebox 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

FEATURES

• 16 analogue inputs
• 8 line outputs
• Includes single Cat 5 MADI card
• Compatible with Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles.
