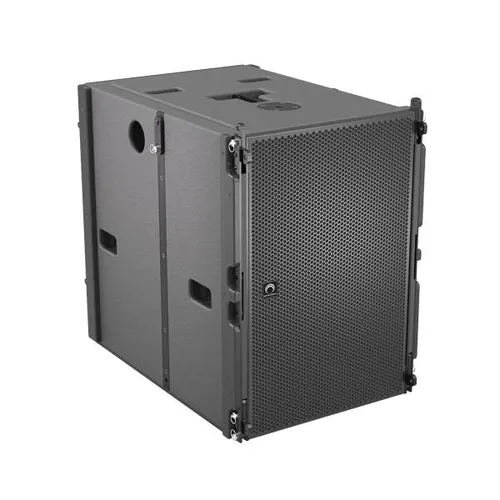

SOUNDVISION FLEXY X F-ONE 15"

SOUNDVISION FLEXY X F-ONE  ลำโพงซับวูฟเฟอร์ 15 นิ้ว มีเพาเวอร์ Active Dual 15-Inch Subwoofer

FLEXY X  is powerful sound Line Array Speaker System,This series adapting to different preferences and scale of applications. With high performance offers various combinations and choices alway herewith a proper solution that meets your need. The true modular design provides FLEXY X series amazing flexibilities to be combined, split and extended freely from 300 people to 8000 people scaled application, from the simplest 2+1 mono to 4-way large system. Benefiting from exceptional analog circuit and D-class switching power technologies, the active product are well recognized for high quality and reliability.

FLEXY X Application

Rigging System

Fixed Installation

Ground Stacked

Main PA

Live Sound & Tour

FEATURE

15-inch dual active subwoofer speaker.

Driver high quality with Two 15” (100mm Voice Coil) Neodymium.

Class-D Amplifier Module with Analog Circuit Technology.

Huge Switching Power Supply.

Ultra compact and solid enclosure high quality birch plywood.

Finished with superb polyurea paint which features anti-scratch and waterproof.

4 lockable wheels design offers easy movement.

Applications with rigging system, ground stacked for font fill use or pole-mounted under F-ONE line array speaker for main PA.

SPECIFICATIONS

MODEL F-ONE sa

Frequency Response (±3dB) 45 Hz~100 Hz

Frequency Range (–10dB) 35 Hz~150 Hz

LF Power Rating (AES) 1000W

Sensitivity (@1W/1m)  LF/HF 99   dB

Maximum SPL  LF/HF 129 dB

Peak SPL  LF/HF 135 dB

Driver LF Two 15” (100mm Voice Coil.) Neodymium

Connectors Neutrik  XLR + POWERCON + SPEAKON

Enclosure 15mm, 18mm Multilayer Birch Plywood

Grille Black Steel Mesh + Acoustic Transparent Cloth

Finish Black Polyurethane Paint

Riggings 4 Fly Points + Pole Mounts

3 Channels Class-D Amp Module@4Ω SUB Channel  LF Channel HF Channel

  2500W  2500W  1000W

THD (1Khz,Full Power 4Ω) 1%

Signal to noise ratio 103 dB  103 dB  102.5 dB

Active Gain (1KHz, 8Ω) 32 dB  32 dB  20 dB

Input Neutrik & Male XLR & Female XLR

Input Impedance 20K Ω Balanced / 10K Ω Unbalanced

Input Connection (Full-Range) Neutrik NL4MP (LF: 1+1- , HF: 2+2-)

Input Connection (Sub) Neutrik NL4MP (BASS: 1+1-)

Cooling System The airffow direction from back to front

Voltage Requirements 200-240V ~ 50-60Hz

Dimensions (H x W x D) 747 x 556 x 785 mm

Net Weight 71 kg
