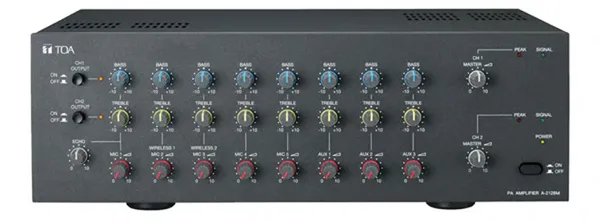

TOA A-2128M AS PA Amplifier

 โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.
28



28

รหัส : A-2128M AS PA Amplifier
ยี่ห้อ : TOA
รุ่น : A-2128M AS PA Amplifier
ราคาปกติ :  21,000.00 บาท
ราคาพิเศษ :  18,250.00บาท
รายละเอียดย่อ : The A-2128M AS is a mixer power amplifier with high capacity for audio requirements in mosque or other places of worship.

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

Power SupplyAC: 220 V, 50/60 Hz
DC: 24 V
Power ConsumptionAC: 520 W (rated output)
AC: 286 W (operation at EN60065)
DC: 20 A (rated output)
Rated Power2 x 120W
Frequency Response50 Hz - 20,000 Hz (±3 dB)
DistortionLess than 1% at 1 kHz, 1/3 rated power
Inputs (Sensitivity, Impedance, Connector)
MIC 1Rear1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Echo
MIC 2Rear1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack
MIC 3Rear1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack
MIC 4Rear1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack
MIC 5Rear1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack
AUX 1Rear300mV (-10dB*) Unbalanced 10kΩ, 2-RCA Pin Jack
AUX 2Rear300mV (-10dB*) Unbalanced 10kΩ, 2-RCA Pin Jack
AUX 3Rear300mV (-10dB*) Unbalanced 10kΩ, 2-RCA Pin Jack
Speaker Outputs100V x 2, 4Ω x 2
PRE AMP OUT1.0V (0dB*) Unbalanced 600Ω x 2, RCA Pin Jack
PWR AMP IN1.0V (0dB*) Unbalanced 10kΩ x 2, RCA Pin Jack
REC OUT1.0V (0dB*) Unbalanced 600Ω x 2, RCA Pin Jack
Phantom PowerDC +21 V (MIC 1)
External AntennaDC +10V for Booster
Noise Level (S/N)More than 80 dB at All Volume control full CCW
More than 50 dB at All Volume control full CW
Output RegulationLess than 3 dB no load to full load
ControlsFront5 Microphone Gain Controls
Front3 Aux Gain Controls
Front8 Bass Tone Controls
Front8 Treble Tone Controls
Front1 Echo Level Control
Front2 Master Controls
Front2 Output Channel On/Off Switch (CH1, CH2)
Front1 Power On/Off Switch
Tone ControlBass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Indicators2 LED Output CH, 2 LED Signal, 2 LED Peak, 1 LED Power On
Ambient Temperature0 ℃ to +40 ℃
FinishFront Panel: Aluminum Painting, Gray
Case: Steel plate, Gray
Dimensions420 (W) × 144 (H) × 361 (D) mm
Weight19.3 kg
