TOA CM-760/CP-73

TOA CM-760 ลำโพงติดเพดาน (6W)

Separate Type Celling Speakers

Domed flush-mount 12cm dynamic cone speaker.

Speaker protected by hard cover.

Plug-in connectors for quick wire hook-up.

Two-branch type bridging terminal for bridging speaker lines.

Easy coil spring catch for installing front grille.

Spec.

• Rated Input 6W
• Rated impedance 1.7k ohms (6W), 3.3k ohms (3W)
• [(6.7k ohms (1.5W), 13k ohms (0.8W): Internal wiring must be changed]
• Sensitivity 90dB (1W/1m)
• Frequency Response 100 - 16,000Hz
• Speaker Component 12cm dynamic cone-type speaker
• Dimensions for Fixing Hole Mounting hole; ø150m
• Ceiling thickness; Max. 50mm
• Speaker Mounting Method Spring catch
• Applicable Cables 600V vinyl-insulated cable (1V wire or HIV wire)
• Solid copper wire; ø0.8 - ø1.2mm
• 7-core twisted copper wire; 0.75 - 1.25mm2
• Connection Push-in connector (bridging and branch connections possible)
• Finish Grile: Fire-resistant, high-impact styrene resin (resin material grade; UL94 V-0 or its equivalent), black
• Dimensions 215 (W) × 134 (H) × 89 (D)mm
• Weight 630g

Optional Applicable Panels CP-73 and CP-77

Note: Do not the speaker with heat insutating material sound absorbing material mounted.

Ensure that the speaker is kept away from the heat insulating material.

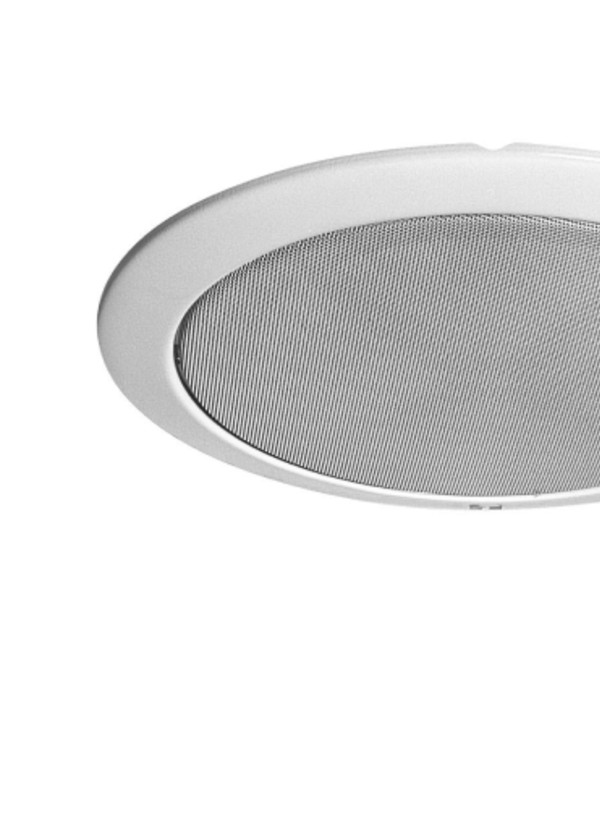

CP-73/CP-77

Front Grille for CM-760

CP-73/CP-77

Speaker Mounting Method Spring catch

Finish CP-73: Frame; ABS resin, off-white/Net; Aluminum, off-white, paint

CP-77: Ream; Metal, off-white/Net; Aluminum, off-white, paint

Dimensions ø180 × 11 (D) (exopsed section)mm

Weight 70g
