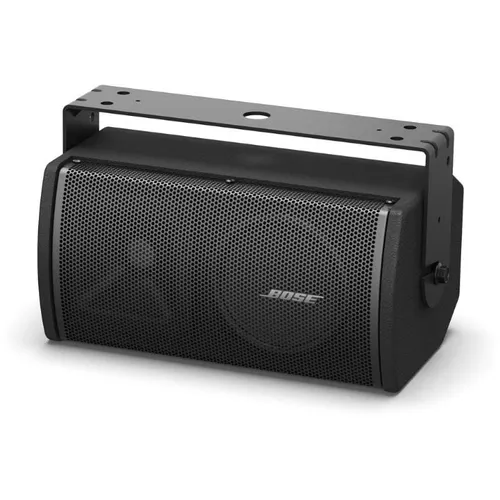

BOSE RoomMatch Utility-RMU105

BOSE RoomMatch RMU105 ตู้ลำโพงสองทางติดผนังขนาด 5.25 นิ้ว ช่วงย่านความถี่ 100Hz - 16kHz   Utility-RMU105 small-format under-balcony , fill loudspeaker , 5.25-inch

Applications:

Under-balcony and zone fill

High-quality foreground music

Stage-front fill

Vocal-range floor monitor

The RoomMatch Utility RMU108 small-format sound reinforcement loudspeaker is intended for use in high-quality foreground music, under-balcony, zone fill and vocal-range floor monitor applications. The design features a single Bose® EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. A single 8-inch woofer provides full-range output and a multi-angle enclosure with rotatable high-frequency waveguide increases mounting flexibility.

ตู้ลำโพงสองทางติดผนังขนาด 5.25 นิ้ว

การตอบสนองย่านความถี่ 100Hz - 16kHz

ลำโพงกำลังขับ 100 วัตต์ (Peak 400W)

Maximum SPL @ 1 m = 116db

Nominal Coverage : 100° x 100°

Net Weigh : 5.4 kg (6.8 kg with U-bracket)

Key Features

Award-winning RoomMatch sound – now in smaller, 2-way, point-source designs for high-level foreground music, under-balcony, zone-fill and vocal-range floor monitor applications

Bose EMB2 compression driver – for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character compared to that of RoomMatch full-range and other RoomMatch Utility models

Ultra-compact design – allows use for high-quality background/foreground music and zone-fill applications that require excellent audio, minimal physical size, and high design aesthetics

100° x 100° constant-directivity high-frequency horn –gives wide, even coverage, allowing vertical or horizontal mounting with no change in coverage pattern.

1 x Bose LF5 5.25-inch woofer – with 1.5-inch long-excursion voice coil extends response to 90 Hz for lowest vocal range

100 Hz – 16 kHz frequency response and 118 dB maximum peak SPL - deliver the performance required for most demanding applications in an ultra-compact enclosure design

Flexible mounting with included U-bracket – Rear enclosure panel also includes 2 x M6 threaded inserts with 3-inch (75 mm) spacing to accept third-party accessory mounting brackets

Specifications

Frequency Response (+/-3 dB)

100 Hz - 16 kHz

Frequency Range (-10 dB)

90 Hz - 16 kHz

Nominal Dispersion

100° H x 100° V

Long-Term Power Handling

100 W (400 W peak)

Sensitivity (SPL / 1 W @ 1 m)

90 dB SPL

Maximum SPL @ 1 m

110dB SPL (116dB SPL peak)

Nominal Impedance

8 Ω (transformer bypassed)
