The Cerwin-Vega! CV-Series high performance professional power amplifiers are rugged, 2U rackmountable workhorses with the muscle to accommodate the most demanding audio challenge. With power ratings up to 2800 watts, support for bridged mono operation, exceptional THD (Total Harmonic Distortion) and Signal-to-Noise ratings, the CV Series power amps are the right choice for a wide range of musical tasks.

Featuring state-of-the-art designs that include a highly efficient tunnel cooling system to ensure reliable, cool running operation, 21-position detent level control knobs for easily repeatable settings, signal and clip indicators for convenient monitoring of the amplifier’s status, and the right connectors for integration into most any environment. The CV-Series Amps are right for the job.

Features :

Power ratings up to 2800 watts

Front panel LED displays indicate power, clip protect and signal status

Balanced XLR and TRS Input connectors

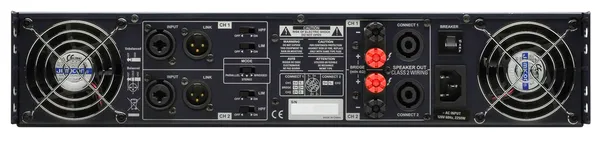

Speakon NL-4 locking output connectors and binding posts

Detented 21-position input level control knobs

Defeatable limiter and high pass filter per channel

Flow-through cooling design prevents overheating

Specifications :

Front panel LED displays indicate power, clip protect and signal status

Balanced XLR and TRS Input connectors

Speakon NL-4 locking output connectors and binding posts

Detented 21-position input level control knobs

Defeatable limiter and high pass filter per channel

Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off muting protection5-way binding post and Speakon output connectors

5-way binding post and Speakon output connectors

Flow-through cooling design prevents overheating with continuously variable speed, front to rear

Performance Data:

Frequency Response: 0/-0.5dB ; 20Hz-20KHz, 0/-3dB: 5Hz-60KHz

Rated Output Power (Stereo): 400 watts at 8 ohms; 600 watts at 4 ohms; 900 wats at 2 ohms

Rated Output Power (Mono): 1200 watts at 8 ohms; 1800 watts at 4 ohms

At Full Power @4 ohms: 19.5A / 9.5A

Signal to Noice Ratio: 20 Hz - 20k Hz - 102dB

Distortion (SMPTE-IM): .01%

Output Circuitry: AB

Damping Factor (400 Hz): 280
