Cerwin Vega CV-5000

CERWIN-VEGA CV-5000 Poweramp 1100W x 2 @ 8Ohm เพาเวอร์แอมป์ 1100W x 2 ที่ 8 โอมห์

This field proven amp design is the most muscular yet in the CV Series and is a perfect match for Cerwin-Vega's largest and loudest Passive Speakers and Folded Horns. A true powerhouse, the CV-5000 is capable of driving the most demanding speaker applications including Cerwin-Vega's TS-42 Folded Horn Sub.

The 3 RU enclosure is compact and feature-laden, with a design that includes a high-efficiency, variable-speed fan tunnel cooling system, complete LED monitoring of the amplifier's status and comprehensive protection circuitry that guards vital components.

Specifications :

Front: Volume control that features a 21 detent potentiometer for each channel

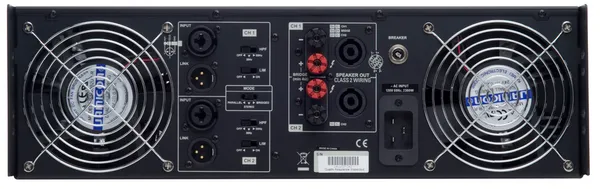

Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)

HPF: On/Off switch for each channel

Limiter: On/Off switch for each channel

Connectors

Input: Combo jack electronically balanced 1/4" & XLR male for input link

Output: 5-way binding post & Speakon® connector for each channel

Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active

Protection: Short Circuit, Thermal, Current Limit, DC Offset, Current Inrush, RF Protection, Turn On / Turn Off Mute

Cooling: Variable speed fan forced cooling

Rated Power:

Stereo @ 8 ohms 1100 W

Stereo @ 4 ohms 1800 W

Stereo @ 2 ohms 2500 W

Bridge @ 8 ohms 3600 W

Bridge @ 4 ohms 5000 W

Input Sensitivity (8 ohms 1.42V (+5.3dB)

Input Impedance 20 kohms Balanced / 10t kohms Unbalanced

Frequency Response (+/-3.0 dB) 5Hz – 50kHz

Class H , 3 tier

T.H.D (1 kHz, Rated Power) < 0.03 % 4 ohms and 8 ohms

Signal to Noise Ratio (20Hz - 20kHz) <-100 dB

Damping Factor (8 ohms,400 Hz) > 300

Power Source 100~240 Vac, 50/60 Hz

Weight (Net) Net:

Dimensions (H x W x D) 132 x 482 x 482 mm
