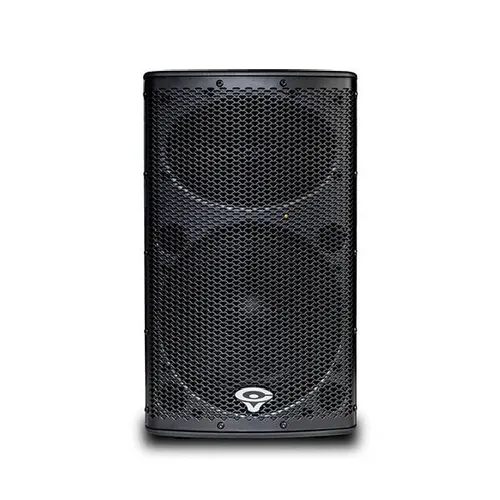

Cerwin Vega  P1000X ตู้ลำโพงขนาด 10 นิ้ว 1000 วัตต์ two-way, bi-amped, full-range bass-reflex speaker.

Description

The P1000X is a two-way, bi-amped, full-range bass-reflex speaker. It employs a 10-inch woofer and a high-frequency compression driver, powered by a custom Class-D amplifier. With a power rating of 1000 watts, the P1000X is one of the most powerful PA product in its class. A proprietary hemi-conical horn provides premium sound clarity over an even and wide coverage area. A built-in mixer with convenient I/O connections allows for simple and fast setup, while Enhanced EQ, VEGA BASS boost and High-Pass Filters enable exact tuning and exceptional performance for any application. The P1000X is a versatile product that can be used as a single speaker for small venues, set in pairs or installed with threaded hang points, and combined with the P1800SX Sub for a larger venue needing more coverage and SPL. Its compact size makes it ideal to operate as a floor monitor as well.

Specifications:

Model: P1000X System Configuration:

Active 2-way full-range, bass reflex

Frequency Range (-10 dB): 51 Hz – 22.5 kHz

Frequency Response (±3 dB): 61.0 Hz – 20.6 kHz

Nomiinal Coverage (-6 dB): 90° Horizontal, 65° Vertical

Maximum SPL(1W @ 1m): 128 dB  Amplifiier

Type:  Class D  Amplifier Rating: 1000 Watts

Dynamic Low Frequency

Driver: 10" High Frequency

Driver: 1¾” diaphragm, 1” exit

Connectors:  CH 1&2 - Neutrik™ XLR/TRS inputs, CH3 Dual ¼” TS THRU 1&2 - XLR, MIX XLR

Indicators:  Signal/Clip, Power, Limiter, Protect  Enclosure: Polymer cabinet, flush waveguide Grille: 18 gauge, perforated steel  Mounting  & Suspension: 35mm pole socket 6 x M10 suspension Operating Temperature: -20° to 55°C

Controls:Gain/Level (Input) - per channel)Line/Mic-D.I. (Input – per channel)Enhanced EQ (On/Off)Vega Bass Boost (On/Off)High Pass Filter (On/Off)Front Light Limiter (On/Off)Main Volume (Output)Remote (Optional)AC Input Voltage (220V-240V / 100V-120V)Power (On/Off)
