EV,Electro-Voice evid C10.1

 โพสต์เมื่อ : 25 พ.ย 2567 เวลา 0:50 น.
1

1



รหัส : evid C10.1
ยี่ห้อ : EV,Electro-Voice
รุ่น : evid C10.1
ราคาปกติ :  24,000.00 บาท
รายละเอียดย่อ :

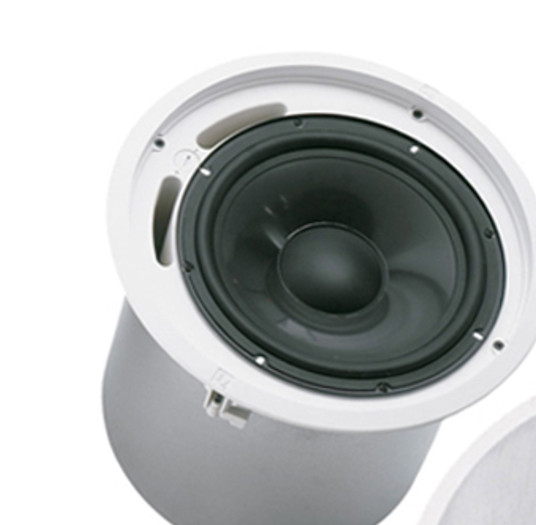

10” high performance subwoofer complete with can enclosure , tile rails , and mounting ring –for 70v/100v or 8 omh. Operation.

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

10” high performance subwoofer complete with can enclosure , tile rails , and mounting ring –for 70v/100v  or  8 omh. Operation.

Tabs at 60, 30 ,15 , 7.5, and 3.75 w.

FEATURES

  • Supplemental LF for ceiling systems
  • High-excursion woofer in ported enclosure for extended lows
  • Low pass network with overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Internally damped heavy-gauge steel enclosure
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories



SPECIFICATION

Chassis Size254 mm (10")
ColorWhite (paintable surface)
Coverage (Nominal -6 dB)180
Diameter (Max)320 mm (12.6")
Input Formats8 Ω, 70 V, 100 V
Mounting SystemsIntegrated 3-point toggle anchors
Speaker TypeDual ported cabinet, internally damped
TransformerYes
Transformer Taps (Transformer Version Only)(7.5 - 70 V only), 15, 30, 60
Frequency Response (-10 dB)45 - 180 Hz
Sensitivity 1 W/1 m94 dB
Max. SPL/1m (calc)122 dB
System Power Handling (Continuous/Program/Peak)150 Watts
LF Transducer10-inch polypropylene cone
Enclosure MaterialSteel enclosure and UL94V-0 rated baffle and bezel
FlyingNo
OutdoorNo
GrillPowder-coated steel
Height303 mm (11.93")
Weight Net7 kg (15.43 lbs)
