รหัส : T-120CD
ยี่ห้อ : ITC-AUDIO
รุ่น : T-120CD
ราคาปกติ :  16,500.00 บาท
เว็บไซต์เกี่ยวข้อง : http://itc-pa.pl/files_mailer/File/instr/T-30CD-60CD-120CD%20PL.pdf
รายละเอียดย่อ :

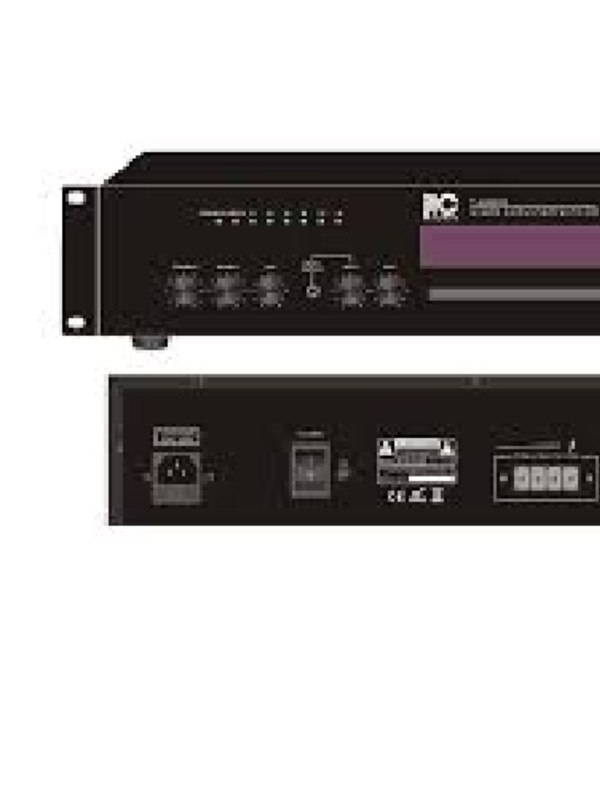

ITC-AUDIO T-120CD เพาเวอร์มิกซ์เซอร์ เครื่องขยายเสียง Power Mixer 120 W.+ CD Player ระบบประกาศสาธารณะ

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

ITC T-120CD เพาเวอร์มิกซ์เซอร์ เครื่องขยายเสียง Power Mixer 120 W.+ CD Player ระบบประกาศสาธารณะ The mixer amplifier with CD player is range from 30W, 60W to 120W. Its design is suitable for both tabletop and rack mount.

The mixer amplifier with CD player is range from 30W, 60W to 120W. Its design is suitable for both tabletop and rack mount.

The one mic inputs by XLR type, phantom power and gain control for mic 1 is provided. One 3.5mm earphone aux input and one dual RCA aux input (with volume control on rear panel) are provided for extra audio sources inputs. One line output could feed signal to an extra power amplifier.

These 100V, 70V and low impedance 4-16ohm speaker terminals are flexible for user during installation. The 100V technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.

It is typically used in villas, shops, supermarkets, restaurants, bars, theme parks, schools, canteens, garages and other places where BGM creates the right atmosphere, as well as clear voice announcement is needed.

FEATURE

  • Amplifier built-in CD player
  • Tabletop and rack mount design
  • Rated power output from 30W, 60W to 120W
  • 100V, 70V and low impedance 4-16ohm speaker outputs
  • 1 mic inputs by XLR type with phantom power and gain control
  • Mic 1 of VOX feature with priority over other inputs
  • One 3.5mm earphone aux input suitable for laptop or Iphone
  • One dual RCA aux input on rear panel with volume control is provided
  • Line output for an extra power amplifier
  • CD, aux1-2, mic volume control and bass/treble tone control
  • 5 functional buttons on front panel
  • Power and protection indicator and output level meter
  • Current limiter, overload, short-circuit and thermal protection

SPECIFICATIONS

ModelT-120CD
Rated Power Output120W
Speaker Outputs70V,100V & 4-16Ω
Aux Input Sensitivity350mV/15KΩ
Frequency Response
50Hz~15KHz (±2dB)
S/N Ratio(AUX)Better than 85dB
T.H.DLess than 0.5% at 1KHz, 1/3 rated power
ControlsPower switch, bass, treble, volume control
IndicatorsPower LED, output level meter, protect
ProtectionShort-circuit, high temperature
Power Supply
~110V/60Hz or ~230V/50Hz
CD PLAYER
Frequency Response20Hz-20KHz(+1/-3dB)
Distortion<0.5%
S/N>85dB
Power Consumption200W
Dimension440 x 360 x 88mm
Weight12.5Kg
