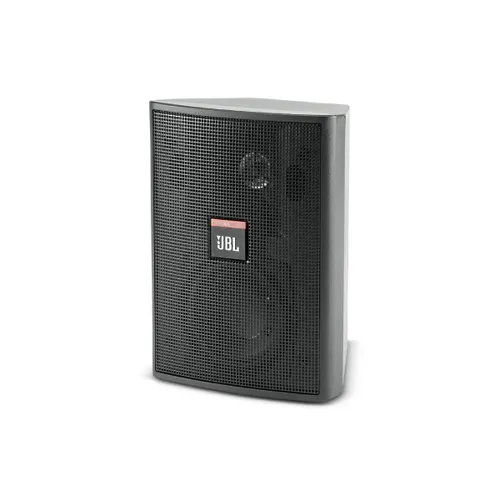

JBL Control 23T ลำโพงติดผนัง 10-Watt ที่ 100V กำลังสูงสุด 50-Watt 8 Ohms, Compact all-weather installation loudspeaker /ราคาต่อคู่ (2 ตัว)

The JBL Control 23T is a 50-Watt, compact all-weather installation loudspeaker in a black finish, available as a pair, and recommended for patio, office, restaurant and retail use, where paging or foreground/background music distribution is required, with minimal aesthetic impact. The speaker is equipped with an isolation transformer and a single power tap with a 5-Watt at 70.V or 10-Watt at 100V power capacity.

The Control 23T features a 3.5" polypropylene-coated woofer and a .5" titanium tweeter mounted in a 90° x 90° dispersion horn. The enclosure surface, which may be painted, is coated with JBL's unique WeatherEdge weather-resistant rubberized treatment, and the speaker's rotation angle is easily adjusted courtesy of the supplied Invisiball mounting system.

The Control 23T is an inexpensive, feature-packed solution for multi-speaker distributed-line systems.

Compact Indoor/Outdoor installation loudspeaker with 70.7V/100V isolation transformer and 50-Watt continuous power capacity for paging and foreground music applications

Distributed-line sound system integration via single power tap with 5-Watt power capacity at 70.7V, 10-Watt capacity at 100V

3.5" polypropylene-coated woofer cone, polycarbonate titanium tweeter diaphragm for protection from moisture and temperature extremes, added rigidity; rust-resistant zinc plate grill speaker cover

90° x 90° high frequency horn

Proprietary WeatherEdge rubberized enclosure coating provides weather and temperature protection for outdoor use

Invisiball rapid installation, theft-deterrent mounting system with 37° vertical rotation and 44° horizontal rotation for optimum and discreet positioning

Overload protection with full-range power limiting protects network and transducers

Paintable surface

Specifications

• Active or Passive Passive
• Frequency Response 100 Hz - 21 kHz (-10 dB)
• Power Capacity Components and Network: 50 Watts continuous
• Transformer: 5 Watts @ 70V, 10 Watts @ 100V
• Maximum Sound Pressure Level (SPL) Not Specified by Manufacturer
• Nominal Sensitivity 86 dB SPL, 1W/1m
• Impedance 8 Ohms
• Crossover 3.5 kHz
• Shielded No
• Low Frequency Driver 3.5" (88mm) Polypropylene Cone with WeatherEdge
• High Frequency Driver 0.5" (13mm) Titanium Coated Polycarbonate
• Enclosure Material HIPS (High Impact Polystyrene)
• Input Connections 2 x Spring Terminals (accepts banana plugs)
• Environmental Mil Spec 810 for Humidity, Salt Spray, Temperature and UV
• IEC 529 IP-X4 Splashproof Rating
• Dimensions 7.6 x 5.5 x 4.4" (193 x 140 x 111mm)
• Weight 4 lb (1.8 kg)

Specialties

• WeatherEdge Weather-Resistant Surface
• Isolation Transformer for 70.7V/100V Distributed-Line Systems
• Invisiball Rotating Mounting System
