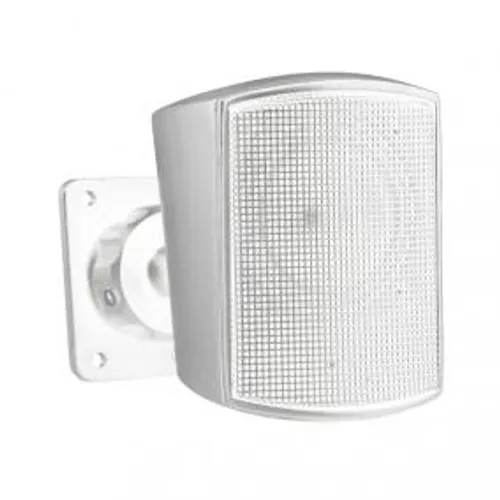

JBL Control 52-WH

JBL Control 52-WH Surface-Mount Satellite Loudspeaker,White

The JBL Control 52-WH is a stylish installation loudspeaker that produces high-quality audio from a compact enclosure. The speaker is ideal for use with the C50 subwoofer and can be set up with 2 or 4 speakers per system. The loudspeaker can also be mixed and matched with Contractor 40 series ceiling speakers.

The speaker has a 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance. The copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability, while the copper-capped pole piece provides consistent impedance and extended HF response. The speaker can work with 70/100V distributed lines and low impedance systems for terrific versatility and the included wall mounting bracket lets you angle the speaker up to 45deg. off-axis.

Features

• Stylish and compact enclosure
• Ideal for use with the C50 subwoofer and can be set up with 2 or 4 speakers per system
• Can be mixed and matched with Contractor 40 series ceiling speakers
• 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance
• Copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability
• Copper-capped pole piece provides consistent impedance and extended HF response
• Works with 70/100V distributed lines and low impedance systems for terrific versatility
• Included wall mounting bracket lets you angle the speaker up to 45deg. off-axis

Specs

• Frequency Range (-10 dB) 140 Hz - 20 kHz
• Frequency Response (±3 dB) 180 Hz - 17 kHz
• Power Capacity 50 Watts Continuous Program Power (2 hrs)
• 25 Watts Continuous Pink Noise (2 hrs)
• 30 Watts Continuous Program Power (100 hrs)
• 15 Watts Continuous Pink Noise (100 hrs)
• Nominal Sensitivity 85 dB (4.0V/1m = 1W)
• 82 dB (2.83V, 1m)
• Nominal Coverage Angle 150 Deg. x 150 Deg. (omnidirectional)
• Rated Maximum SPL (1m) 94 dB average, 100 dB peak
• Nominal Impedance 16 ohms
• Driver 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex former, secondary bucking magnet and copper sleeved pole piece for high frequency extension
• Input Connector Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm)
• Material High impact polystyrene, painted zinc-plated metal grille
• Dimensions (H x W x D) Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.77")
• Wall Bracket: 51 mm (2.0")
• Weight 0.7 kg (1.5 lbs)
