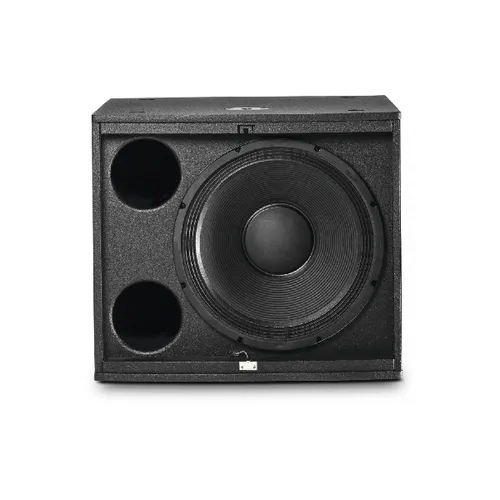

JBL EON618S







JBL EON618S ลำโพง 18" Self-Powered Subwoofer

EON618S/230

18" Self-Powered Subwoofer

The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.

Feature.

JBL Premium Transducers

1000 W highly efficient Class-D amplification

Maximum SPL Output: 134dB

System Type: Self powered 18” Subwoofer

Frequency Range (-10dB): 31Hz - 150Hz

Frequency Response (- 3dB): 42.5Hz - 150Hz

Bluetooth Control

• 3 Parametric EQs + Hi & Lo Shelf • Gain and Delay • Save and Recall settings • Polarity Inversion

JBL Engineered Crossover Presets

• 80 Hz • 100 Hz • 120 Hz • EON

M20 Pole Cup

Rugged, stage-ready Duraflex enclosure

Specs.

• System Type Self powered 18” Subwoofer
• Maximum SPL Output 134 dB
• Frequency Range (-10 dB) 31Hz –150Hz
• Frequency Response (-3 dB) 42.5Hz – 150Hz
• System Power Rating 1000W Peak, 500W Continuous
• Input Impedance 22k (balanced)
• Line Input Gain 0 to 36 dBu
• Line +14dBu
• Connectors 2 x Balanced XLR-1/4” combination inputs;
• 2 x male XLR loop thru out
• LED Indicators Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)
• Cooling Passive
• AC Power Input 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
• AC Power Consumption (120V~) 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max),
• 1/3rd Power – 2.03A (Max)
• LF Driver 1 x JBL 618H 457mm (18”) woofer with 2” voice coil
• Crossover Frequency Selectable; 80 Hz, 100 hz, or 120 Hz
• Material Duraflex coated wooden enclosure
• Suspension/Mounting M20 Threaded Pole Cup
• Handles 2
• Grille Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing
• Dimensions (L x W x H) 582mm x 668mm x 645mm
• (22.9” x 26.3” x 25.4”)
• Weight 72 lbs (35.5 kg)
• Shipping Weight 91 lbs (41.2 kg)
•   Shipping Dimensions (L x W x H) 803mm x 768mm x 631mm (31.6" x 30.2" x 25.1")
