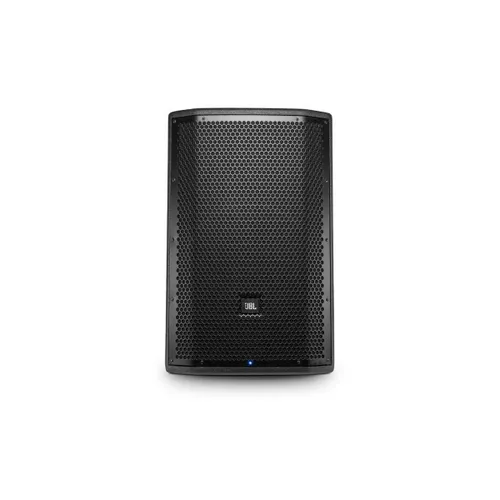

JBL PRX812W/230D ลำโพง 12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The JBL PRX812W is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812W delivers incredible volume in a lightweight and compact form factor.

Feature.

Built-in Wi-Fi for wireless control of your system from anywhere in the venue

Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

Class-leading 1500-watt amplifier delivers ample power to fill your venue

JBL Differential Drive® transducers for higher SPL in a lightweight design

Next-generation JBL neodymium compression drivers

Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through

Intelligent variable-speed fan activates only when needed to reduce noise

Updated tuning delivers flat frequency response and smooth off-axis behavior

Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles

Universal power supply for worldwide compatibility

dbx Type IV™ limiting ensures clear, accurate sound at high volumes

Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

APPLICATIONS

PRX812W is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812W is a perfect match with a PRX818XLFW subwoofer, offering a high performance self-powered sub/sat system.

The PRX812W is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

SPECIFICATIONS

System Type

Self Powered 12”, two-way, bass-reflex

Maximum SPL Output135 dB peak

Frequency Range (-10 dB)

Main: 52.6-20k

Monitor: 50.3 - 20k

Frequency Response (±3 dB)

Main: 58.1 - 20k

Monitor: 59- 20k

Input Connectors

2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Input Impedance

20K Ohms (balanced), 10K Ohms (unbalanced)

Signal Indicators

Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting

Signal: Green LED indicates signal present

Power: Blue indicates system has power and ready to pass audio

EQ

User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application

Dynamic Control (Input)

dbx Type IV™ limiter circuit

Crossover Frequency1.850 kHz

Design

Highly efficient Class-D amplifier

Power Rating1500W (750W x 2)

AC Power Input100V - 240V ~ 50/60 Hz

LF Driver1 x JBL 272G 305 mm (12 in) woofer

HF Driver1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Coverage Pattern90° x 50° nominal

Directivity Index (DI)10.2 dB

Directivity Factor (Q)10.4

Enclosure

Asymmetrical, 18 mm, plywood

Suspension / Mounting

Dual 36 mm pole socket, 12 x M10 Suspension Points

Transport1 x injection molded handle with backing cup

Finish

Obsidian DuraFlex™ finish

Grille

Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Dimensions (H x W x D)599 mm x 385 mm x 341 mm

(23.6 in x 15.1 in x 13.4 in)

Net Weight19.4 kg (42.5 lb)

Gross Weight21.2 kg (48.0 lb)
