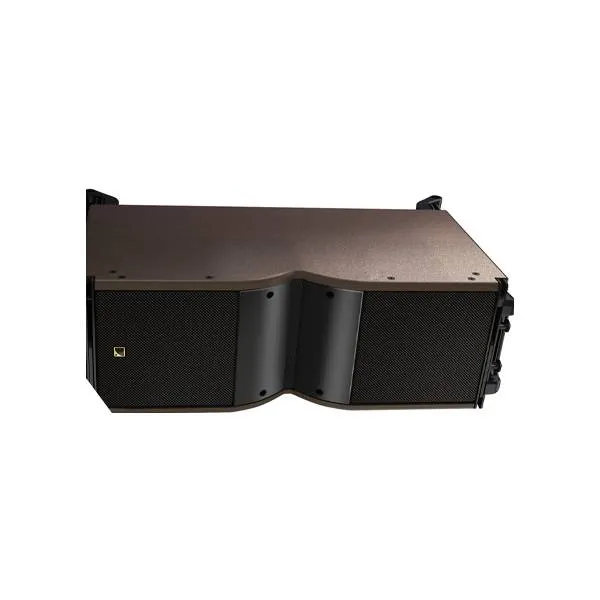

L-Acoustics KARA









L-Acoustics KARA ลำโพง 2-way modular WST enclosure.

Modular WST line source

Compact and lightweight design, compliant with rigging and sightline constraints

Extended LF resources for contour requirements from flat to medium

Clarity, intelligibility and precision for vocal, speech and lead instruments

110° horizontal directivity for distributed applications, fills and central clusters

• LA-RAK (LA8) advanced system drive and protection
• State-of-the-art rigging system for high accuracy and quick set-up
• White and architectural RAL color available (KARAi)
•  Usable bandwidth (-10dB) 55 Hz - 20 kHz ([KARA] preset)
• Nominal Directivity (vertical line source) (-6dB)
• Horizontal: 110° symmetricVertical: Dependent upon number of elements and line source curvature
• Maximum SPL 139 dB ([KARA] preset)
• RMS handling capacity LF: 450 WHF: 80 W
• Components LF: 2 x 8’’ neodymium weather-resistantHF: 1 x 3’’ neodymium diaphragm compression driver
• Nominal impedance: LF = 8 ohms, HF = 8 ohms
• Rigging Steel, certified for: 24 KARA (BGV-C1 compliant)
• Angle increments: 0, 1, 2, 3, 4, 5, 7.5, 10°
• Physical data
• W x H/h x D: 730 x 250/164 x 482 mm - 27.7 x 9.8/6.4 x 19 in
• Weight (net): 26 kg 57.2 lbs
• Connectors: 2 x 4-point Speakon®
• Material: baltic birch plywood
• Finish: Grey-brown, RAL 8019®
• Front: polyester powder-coated steel grill, Airnet® acoustically neutral fabric
• Rigging: steel with dual coating zinc and polyester powder
• Drawings
