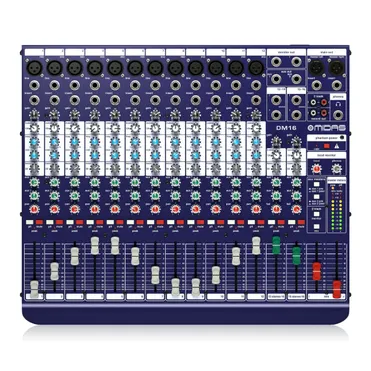

MIDAS MIXER DM16

Features:

• Live performance and studio recording analogue mixer with 16 input channels
• 12 mono input channels with award-winning MIDAS microphone preamplifiers
• 2 electronically balanced stereo line input channels on 1/4″ TRS connectors
• 3 band EQ on mono channels with swept mid band
• 2 aux sends with pre/post fade switching
• 60 mm precision long-life faders
• Rugged chassis construction for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Designed and engineered in England

  Specifications

  Input Channels	Mic inputs (MIDAS mic preamp): 12 Type: XLR, balanced Mic EIN @ 60 dB Gain, 50 ohms Source at Insert Send: -131 dBu, unweighted, 20 Hz to 20 kHz Mic EIN @ 60 dB Gain, 150 ohms Source at Insert Send: -128 dBu, unweighted, 20 Hz to 20 kHz Noise @ 10 dB Gain, at Insert Send: -97 dBu, unweighted, 20 Hz to 20 kHz Frequency Response (-1 dB) at Main Output: 20 Hz to 20 kHz (-1 dB) Frequency Response (-3 dB) at Main Output: 70 kHz (-3 dB) Mic Gain Range: +10 dB to +60 dB Maximum Input Level: +11 dBu @ +10 dB gain CMRR @ +60 dB Gain: Typically -90 dB Impedance: 2 kOhms, Balanced Distortion (THD+N) at 0 dBu: 0.005% @ 1 kHz Phantom Power: Switchable, +48 V
  Line Input	Type: 1/4″ TRS, balanced Impedance: 20 kOhms balanced / unbalanced Line Gain Range: -10 dB to +40 dB Maximum Input Level: +30 dBu
  Stereo Input	Type 4 x 1/4″ TRS connector, balanced Impedance: 20 kOhms balanced / unbalanced Gain Range: -20 dB to +20 dB Maximum Input Level: +21 dBu
  Equalizer	Low: ±15 dB @ 80 Hz, shelving Mid (mono inputs only) ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric High ±15 dB @ 12 kHz, shelving
  Channel Inserts	Type: 1/4″ TRS connector, unbalanced Maximum Input / Output Level: +21 dBu
  AUX Sends	Type: 2 x 1/4″ TRS connector, balanced Impedance: 240 ohms balanced, 120 ohms unbalanced Maximum Output Level: +21 dBu
  Monitor Output	Type: 2 x 1/4″ TRS connector, balanced Impedance: 240 ohms balanced, 120 ohms unbalanced Maximum Output Level: +21 dBu
  Main Output	Type: 2 x XLR, electronically balanced Impedance: 100 ohms balanced, 50 ohms unbalanced Maximum Output Level: +21 dBu
  Inserts	Main Out Inserts: Type: 2 x 1/4″ TRS connector, unbalanced Maximum Input/Output Level +21 dBu
  Phones/Line Out	Type 1/4″ TRS connector, unbalanced Impedance: 25 ohms Maximum Output Level: +21 dBu
  Track Format	Type: 2 x RCA, unbalanced Impedance: 20 kOhms Maximum Input Level: +21 dBu
  Record Output	Type: 2 x RCA, unbalanced Impedance: 1 kOhm Maximum Output Level: +21 dBu
  Main Mix	Main Mix @ -∞, Channel Fader @ -∞: -104 dBu, unweighted, 20 Hz to 20 kHz Main Mix @ 0 dB, Channel Fader @ -∞: -91 dBu, unweighted, 20 Hz to 20 kHz Main Mix @ 0 dB, Channel Fader @ 0 dB: -84 dBu, unweighted, 20 Hz to 20 kHz
  Power Supply	Switch Mode Power Supply: 100 to 240V to 50/60 Hz, switchable (T 1.6 A H 250 V) Power Consumption: 40 W Mains Connection Standard IEC receptacle
  Dimensions (H x W x D)	3.7 x 17 x 15″ (9.5 x 44 x 37 cm)
  Weight	2.3 lb (5.0 kg)




  Packaging Info
  Package Weight	13.5 lb
  Box Dimensions (LxWxH)	20.0 x 17.5 x 6.0″
