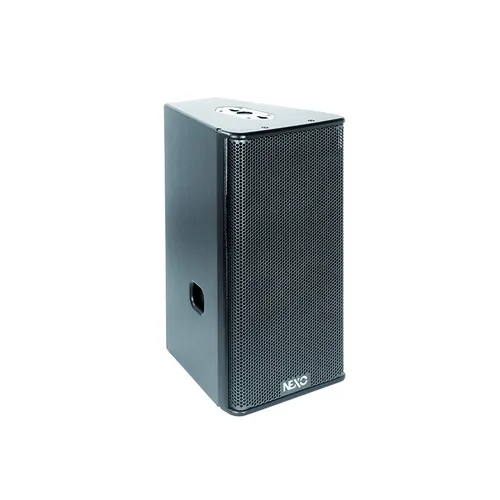

NEXO GEO S1230 ลำโพง scalable loudspeaker module

The compact, 2-way GEO S1230 is a scalable loudspeaker module that displays exceptional MF-LF output (103dBSPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A narrow-Q (30°) device in single-source mode, S1230’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional "tight-pack" pattern control in the non-coupled plane.

Coupled MF/HF pattern control is array-dependent, as designed by GEOSoft2 array software. Non-coupled MF/HF coverage is adjustable, via NEXO’s patented Configurable Directivity Device (CDD) flanges, at either 80° or 120°. Comprehensive hardware accessories, for both fixed and mobile systems, optimize inter-cabinet angles and rigging. NEXO’s NXAMP TDcontroller maximizes S1230’s MF/HF coherency while providing EtherSound network control.

Features

• Coherent Wave Propagation from NEXO’s Advanced GEO Hyperbolic Wavesource
• Advanced Constant Velocity Profile Output from 28.5° Wavefront Curvature
• Integral Rigging System with Angles from 22.5° to 30°
• NS-1 Configurable
• Bottom-Line Engineering for Theatre to Arena-Sized Fixed & Mobile Applications
