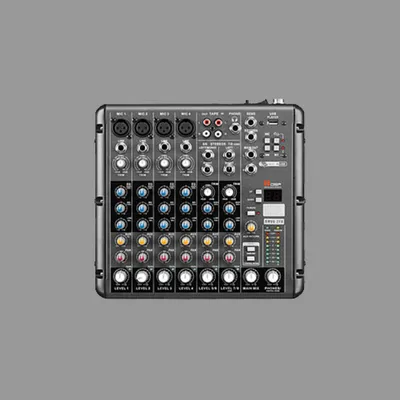

NTS RMV8/2FX



NTS RMV8/2FX มิกเซอร์ 8 อินพุท (4 โมโน 2 สเตอริโอ) + 99 DSP / USB

Main Feature

- 8 channel mixer (4 mono input and 2 stereo input)

- 3 band EQ on mono input and 2 band EQ on stereo input

- 1 Aux send for external effects and monitoring

- Peak LED on all input

- Built in 99 program digital effect

- USB interface for MP3 input and playback

- +48V phantom power supply

Input Channel

Mic Input Electronically balanced, discrete input configuration

     : Frequency Response 10Hz to 200KHz

     : Gain Range +14dB to +60dB

     : SNR 120dB E.I.N.

Line Input Electronically balanced

     : Frequency Response 10Hz to 130KHz

     : Gain Range -6dB to +38dB

     : SNR 95dB E.I.N.

Stereo Channel

Frequency Response 10Hz to 70KHz

Gain Range : Line -8dB to +15dB

                        : Mic +13dB to +60dB

SNR : Line 96dB

         : Mic 104dB E.I.N.

Equalization

Mono Channel EQ : High +/-15dB, 12KHz

                                    : Mid +/-15dB, 2.5KHz

                                    : Low +/-15dB, 80Hz

Stereo Channel EQ : High +/-15dB, 10KHz

                                      : Low +/-15dB, 120Hz

Main Mix

Main Output +28dBu balanced / +22dBu unbalanced

AUX Send +22dBu unbalanced

Tape Out +22dBu unbalanced

Phone Output +15dBu

Physical Dimension and Weight

Dimension [HxWxD] 72 x 260 x 250 mm.

Weight 3.5 kg.
