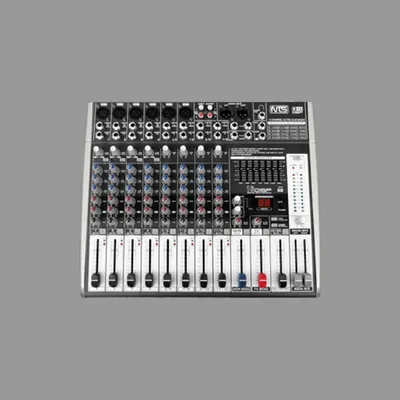

NTS S12

NTS S12 มิกเซอร์ 12 อินพุท (4 โมโน 4 สเตอริโอ) + 16 DSP

Main Feature

- 12 channel mixer (4 mono input and 4 stereo input)

- Insert point on mono input

- 3 band EQ on all input

- 1 Aux send for external effects and monitoring

- Peak LED on all input

- LOW CUT switch on mono input

- MUTE switch on all input

- Built in 16 program digital effect

- Voice canceller function

- 7 band graphic EQ

- +48V phantom power supply

Technical Specification

Total Harmonic Distortion ≤ 0.05%

Frequency Response 5Hz - 50KHz , +/-3dB

S/N Ratio ≥ -103dB

Max Output 4V max

Input Sensitivity : Mic -60dB

: Line -40dB

: Effect Return -40dB

: Aux in -40dB

: Tape in -40dB

Mono Channel EQ : High +/-15dB, 12KHz

: Mid +/-15dB, 2.5KHz

: Low +/-15dB, 80Hz

Stereo Channel EQ : High +/-15dB, 12KHz

: Mid +/-15dB, 2.5KHz

: Low +/-15dB, 80Hz

Power Requirement AC 220V/50Hz

Mic Input Section

Mic Input Electronically balanced, discrete input configuration

Bandwidth 10Hz - 60KHz, +/-3dB

Distortion (THD & N) 0.01% @ +4dBu, 1KHz, Bandwidth 80KHz

Mic E.I.N (22Hz - 22KHz) -129.5dBu, 150Ω source

-117.3dBqp, 150Ω source

-132.0dBu, input shorted

-122.0dBqp, input shorted

Line Input Section

Line Input Electronically balanced

Bandwidth 10Hz - 60KHz, +/-3dB

Distortion (THD & N) 0.01% @ +4dBu, 1KHz, Bandwidth 80KHz

Master Mix Section

Max Output +22dBu balanced

Aux Send Max Out +22dBu unbalanced

Control Room Out +22dBu unbalanced

Signal to Noise Ratio +122dBu, all channed at unity gain
