QSC AD-C6T-BK/WH

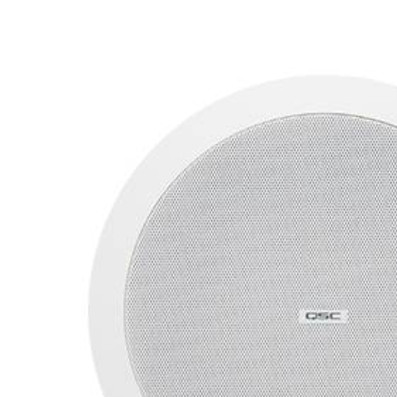

QSC AD-C6T ลำโพงเพดาน 6.5" Two-way surface speaker, 70/100V transformer with 16Ω bypass, 135° conical DMT coverage,includes C-ring and rails for blind mount installation. Available in black or white. Priced individually but must be purchased in pairs.

Feature.

Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications

DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area

Snap-fit magnetic grille

3x double stepped, long travel dog-ear blind mount system

Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers

Low-saturation and low-loss 70/100V transformers with 16Ω bypass

Blemish-free removable logo

Removable conduit cover plate, also available as accessory for pre-install wiring

UL1480 and UL2043 certified EN54-24 Type A (pending)

Available in black (RAL 9011) or white (RAL 9010)

Complete EASE, CF2, CAD, & BIM information available online

SPECIFICATIONS

AD-C6T

Effective frequency range1

63 Hz – 20 kHz

Rated noise power / voltage2

60 watts / 31 volts (rms)

Sensitivity [dB]3

Sensitivity at 4m, 100V maximum tap

88

TBD

Rated coverage (-6 dB)4

Coverage angle by frequency

Conical coverage

140° conical DMT

500Hz 1000Hz 2000Hz 4000Hz

160° 160° 160° 170°

One-third octave frequency band contribution at full power using 100V maximum tap (Hz / dB)

500 / 57.4; 630 / 57.4; 800 / 57.4

1000 / 57.4; 1250 / 57.4; 1600 / 57.4

2000 / 57.4; 2500 / 57.4; 3150 / 57.4

4000 / 57.4

Directivity factor (Q)6.5

Directivity index (DI) [dB]8

Maximum continuous SPL [dB]5106

Maximum peak SPL [dB]5112

Nominal impedance [ohms]16

Recommended amplifier120 watts

Transformer taps / impedance

16Ω (in bypass setting)

7.5W (70V); 15W (100V) Tap: 667Ω

15W (70V); 30W (100V) Tap: 333Ω

30W (70V); 60W (100V) Tap: 167Ω

60W (70V); N/A (100V) Tap: 83Ω

LF transducer

165 mm [6.5 in] weather resistant paper cone woofer

HF transducer

25 mm [1 in] aluminum dome tweeter

Input connector type

Euroblock connector with parallel output

Enclosure material

ABS baffle on powder coated steel back can

Grille material

Powder coated steel

Ingress protection

IP-54

Operating environment

Designed for indoor use

Operating temperature range

-20 to 50° C [-4 to 122° F]

Cutout dimension

Ø 245 mm [Ø 9.65 in]

Net weight

4.3 kg [9.5 lb]

Product dimensions (Diameter x Height)

Ø 280 x 237 mm [Ø 11.02 x 9.32 in.]

Shipping weight

12.6 kg [27.8 lb] (pair packed)

Shipping dimensions (H x W x D)

330 x 737 x 381 mm [13 x 29 x 15 in] (pair packed)

Included accessories

C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille

Optional accessories

AD-MR6 (pre-install mud ring)

AD-CC6 (pre-install conduit cover)

Safety Agency

EN54-24: 2008 type A (No. pending)

UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.
