QSC AD-C81TW
ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944
รายละเอียดทั้งหมด

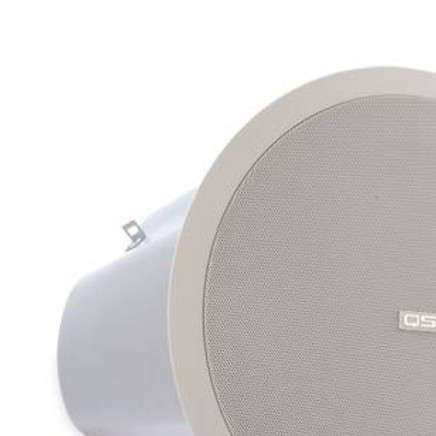

QSC AD-C81TW ลำโพงติดเพดาน ติดฝ้า Ceiling Mount Subwoofer System(white),8” woofer polypropylene cone,70/100
The QSC AD-C81TW Ceiling Mount Subwoofer System (White) is designed to supplement audio systems with low-frequency extension--it's acoustically matched to the entire AD Series. The AD-C81TW is rated for 100 watts continuous power handling and can take up to 400-watt peaks.
The AD-C81Tw has an 8" woofer with a polypropylene cone for protection in humid environments. The driver has a synthetic rubber surround and works optimally with the large port to deliver excellent low frequency extension below 40 Hz without undesirable port turbulence. It also features a built-in passive low pass filter set at 120 Hz. The filter is defeatable from the front baffle to allow the use of outboard crossovers. The AD-C81Tw is equipped with a 70/100V transformer with multiple taps and an 8-ohm bypass.
8" polypropylene cone woofer
Large port area for extended low-frequency performance
Defeatable passive 120 Hz low-pass filter with impedance compensation
100 watts continuous power handling, 400 watts peak
70/100 V multitap transformer with 8 ohm bypass
C-ring and tile rails included
Side cable entry
FEATURES
- 8" polypropylene cone woofer
- Large port area for extended low-frequency performance
- Defeatable passive 120 Hz low-pass filter with impedance compensation
- 100 watts continuous power handling, 400 watts peak
- 70/100 V multitap transformer with 8 ohm bypass
- C-ring and tile rails included
- Side cable entry
Package Includes: 1 qty. AD-C81Tw loudspeaker 1 qty. C-ring and tile rails 1 qty. Round grille (white, paintable) 1 qty. Paint mask 1 qty Connector assembly
Frequency Response | Enclosure Dimensions
| SPECIFICATIONS | AD-C81Tw |
|---|---|
| Configuration | Ceiling subwoofer, ported |
| Low-frequency Transducer | 8" (20 cm) weather resistant, polypropylene cone woofer, rubber surround |
| Frequency Range 1 Frequency Response (-6 dB) Useable Frequency Range (-10 dB) | 39 Hz - 184 Hz 28 Hz - 208 Hz |
| Filter | 120 Hz low pass, passive, bypassable |
| Maximum Output 2 Calculated Peak Output Calculated Continuous Output | 118 dB SPL 112 dB SPL |
| Nominal Impedance | 8 ohms switchable |
| Power Rating RMS Power Handling3 Recommended Max Amp Power | 100 W (100 hours IEC) 200 W RMS |
| Sensitivity | 92 dB, 2.83 V, 1 m, free space (4pi) |
TRANSFORMERS | |
| Type | Custom low distortion laminated core, wide bandwidth design |
| Taps | 70 V: 60, 30, 15, 7.5 W / 100 V: 60, 30, 15 W / 8 ohms selected by switch |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X3 splash rating |
| Agency Rating | Listed UL1480, UL2043 safe for use in air handling spaces; Transformer is Listed UL1876; Compliant BS/EN 60849 safety standards |
ENCLOSURE | |
| Material | Injection molded, high impact polystyrene baffle on a steel enclosure |
| Finish | White (paintable) |
| Grille | Painted aluminum |
| Connectors | Ceramic block or 4-pin Euro terminals in fire protective sub-chamber |
| Mounting Hardware | Rails and C-ring for ceiling tile installation |
| Weight | 20 lb (9.1 kg) Net 28 lb (12.7 kg) Shipping |
| Available Accessories | ADC-MRS Mud ring bracket • ADC-NCS New construction bracket |
