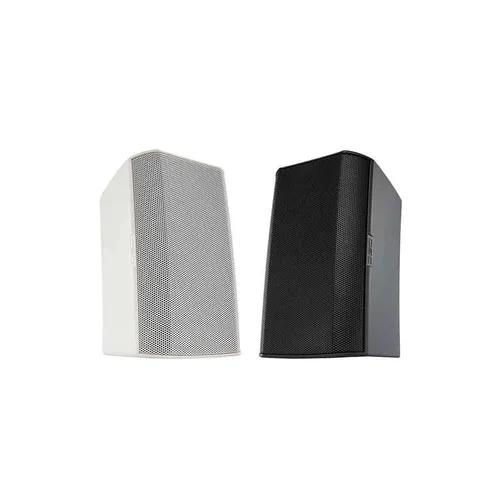

QSC AD-S6-BK/WH

 โพสต์เมื่อ : 25 ธ.ค 2567 เวลา 8:34 น.
329


329
รหัส : AD-S6-BK/WH
ยี่ห้อ : QSC
รุ่น : QSC AD-S6-BK/WH
ราคาปกติ :  15,000.00 บาท
ราคาพิเศษ :  14,250.00บาท
รายละเอียดย่อ :
6.5" Two-way surface speaker, 16Ω (no transformer) , 105° conical DMT™ coverage, includes X-Mount™ and weather input cup. Color - Black,White. Priced individually, sold only in pairs.

ราคาพิเศษสอบถามโทร 02-981-0944,080-614-4774,098-565-9747


รายละเอียดทั้งหมด

Features

  • 6.5-inch weather treated woofer
  • 105° conical DMT coverage
  • Maximum peak SPL 116 dB (16 Ω)
  • Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online



System DetailsAD-S6
HF transducer1" silk dome tweeter / 1" voice coil, horn loaded
LF transducer6.5" weather treated paper cone woofer

1.5" / 38 mm voice coil
Effective frequency range1,2,3,858 Hz - 20k Hz
Rated noise power / voltage6150 W / 49 V (rms)
Broadband sensitivity2,3,4,889 dB SPL
Coverage angle (-6 dB)2,5,8105° conical DMT™
Directivity factor (Q)2,5,85
Directivity Index7 dB
Maximum continuous SPL7110 dB
Maximum peak SPL7116 dB
Rated impedance16 Ω
Recommended amplifier power300 W
Input connector typeEuroblock connector with parallel output
Enclosure materialPainted ABS polymer
Grille materialPowder coated aluminum
Enclosure Details
Ingress protectionIP-54
Operating environmentDesigned for indoor and outdoor use
TestingThe AD-S6 Series loudspeakers qualified for outdoor use using the following tests:

  • Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
  • Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
  • High and low temperature: tested to QSC internal standards between -20° and 50° C

Operarating temperature range-20 to 50 °C / -4 to 122 °F
Net weight11.6 lb / 5.26 kg
Product dimensions
(HWD) inches		14.4 × 8.5 × 8.5
Product dimensions
(HWD) mm		365 × 215 × 215
Shipping weight28.7 lb / 13.02 kg (pair packed)
Shipping dimensions
(HWD) inches		20 × 12 × 23 (pair packed)
Shipping dimensions
(HWD) mm		510 × 305 × 585 (pair packed)
Included accessoriesPatented X-Mount™ mounting system, Euroblock connector,
input panel cover
