QSC AD-S.SAT-WH

 โพสต์เมื่อ : 25 ธ.ค 2567 เวลา 8:34 น.
314


314
รหัส : AD-S.SAT-WH
ยี่ห้อ : QSC
รุ่น : QSC AD-S.SAT-WH
ราคาปกติ :  4,300.00 บาท
ราคาพิเศษ :  4,085.00บาท
รายละเอียดย่อ :

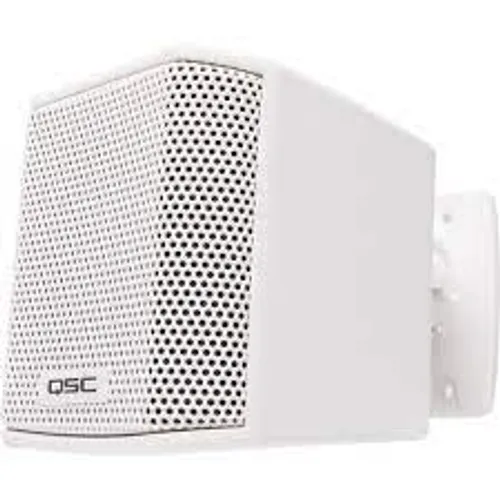

2.75" Satellite surface speaker, 16Ω, 150° conical coverage, includes mounting bracket for surface installation. Color - White. Priced individually, sold only in pairs.

ราคาพิเศษสอบถามโทร 02-981-0944,080-614-4774,098-565-9747


รายละเอียดทั้งหมด

Features

  • Inverted aluminum dome dust cap
  • Rated at 16 Ω
  • Locking 2-pole Euroblock connectors
  • X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
  • Available in black (RAL 9011) or white (RAL 9010)



SpecificationsAD-S.SAT
LF transducerN/A
HF transducer2.75-inch (70 mm) weather treated paper cone woofer
Effective frequency range150 Hz – 20 kHz
Rated noise power / voltage 625 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)		82
Coverage (‐6 dB) [°]170 Conical
Directivity factorTBD
Directivity index [dB]TBD
Maximum SPL [dB]
(rated, 1 m (continuous / peak)		90 / 96
Recommended amplifier25 W (with 1st order high-pass filter at 200 Hz)
Transformer taps / impedanceBypass: 16 Ω
Connector2-pole Euroblock
Enclosure materialABS
Grill materialPowder coated steel
Ingress protectionIP-34
Operating environmentDesigned for indoor use
Operating temperature range-4 to 122° F (-20 to 50° C)
Net weight0.95 lb (433 g)
Product dimensions including wall bracket
(H x W x D)		3.6 x 3.5 x 5.4-inch (92.5 x 89 x 136 mm)
Shipping weightTBD (pair packed)
Shipping dimensions (H x W x DTBD (pair packed)
Included accessoriesX-Mount Mini, Euroblock connector (pair packed)
Safety agencyTransformer UL registered per UL1876, ROHS, CE compliant
