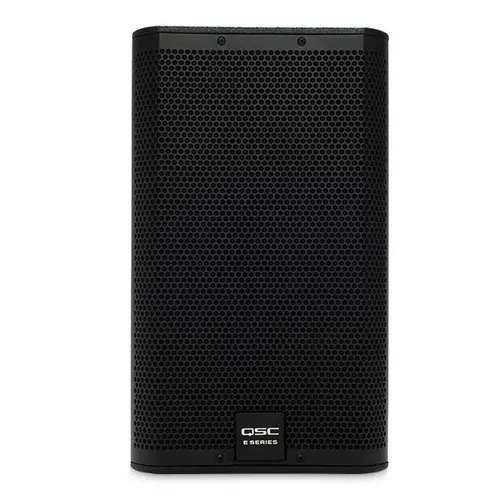

QSC E10

QSC E10 ตู้ลำโพง 10" 2-way, externally powered, live sound-reinforcement loudspeaker. Available in black only.

Features

High output, professional quality sound with 300 W continuous power

E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.

Rugged tour-grade textured paint

Foam-lined perforated steel grill

Suitable for main PA and stage monitor

Available U-Style Yoke and M8 rigging kit for permanent installation

Dual angle pole socket

Model E10

Configuration 1 x 10-inch, 2-way, non-powered

Frequency Range (-6 dB) 68Hz – 20kHz

Power capacity²: continuous/peak 300 W / 1200 W

Sensitivity 95dB, 1W@1m

Coverage Angle 85° conical DMT

Output (Peak SPL @ 1m) 126dB

Drivers

LFHF

254 mm (10-inch) driver with 64 mm (2.5-inch) voice coil;

25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver

Nominal Impedance 8Ω

Cross-over Full-range only, 1.8kHz

Input Connections 2x NL4, 1x barrier strip

Enclosure Multi-angle plywood, black texture pain finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.

Mounting and suspension 6 x M8 suspension points, dual angle, 35mm pole-socket

Net weight 20kg / 44lbs

Shipping weight 23kg / 50lbs

Dimensions

(WxHxD)  330x560x330mm13x22x13 in
