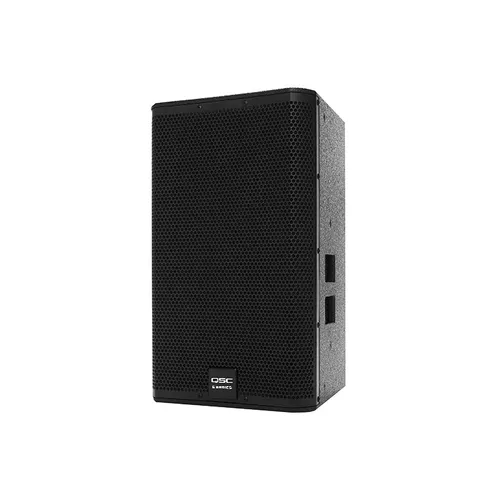

QSC E12 ตู้ลำโพง 12" 2-way, externally powered, live sound-reinforcement loudspeaker. Available in black only.

Features

High output, professional quality sound with 400 W continuous power

E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.

Rugged tour-grade textured paint

Foam-lined perforated steel grill

Available U-Style Yoke and M8 rigging kit for permanent installation

Dual angle pole socket

Model E12

Configuration  1 x 12-inch, 2-way, non-powered

Frequency Range (-6 dB) 64Hz – 20kHz

Power capacity²: continuous/peak 400 W / 1600 W

Sensitivity 96dB, 1W@1m

Coverage Angle 85° conical DMT

Ouptut (peak SPL @ 1m) 128dB

Drivers

LF HF

305 mm (12-inch) driver with 76 mm (3-inch) voice coil

25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver

Nominal Impedance 8Ω

Cross-over Full range only, 1.8kHz

Input Connections 2x NL4, 1x barrier strip

Enclosure Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.

Mounting and suspension 6 x M8 suspension points, dual angle, 35mm pole-socket

Net Weight 23 kg / 51 lbs

Shipping Weight 26 kg / 57.5 lbs

Dimensions

(WxHxD)  360x616x371mm 14.2x24.2x14.6in
