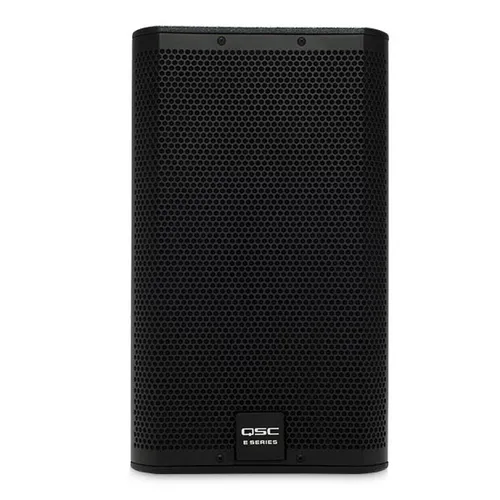

QSC E15

QSC E15 ตู้ลำโพง 15" 2-way, externally powered, live sound-reinforcement loudspeaker. Available in black only.

Features

High output, professional quality sound with E15 – 500 W continuous power

E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.

Titanium diaphragm for high fidelity and long life

Rugged tour-grade textured paint

Foam-lined perforated steel grill

Available U-Style Yoke and M8 rigging kit for permanent installation

Dual angle pole socket

Model E15

Configuration 1 x 15-inch, 2-way, non-powered

Frequency Range (-6 dB) 55Hz – 20kHz

Power capacity²: continuous/peak 500 W / 2000 W

Sensitivity  97dB, 1W@1m

Coverage Angle 75° conical DMT

Output (peak SPL @ 1 m) 130dB

Drivers

LFHF

381 mm (15-inch) driver with 89 mm (3.5-inch) voice coil

38 mm (1.5-inch) exit, 71 mm (2.8-inch) voice coil, compression driver

Nominal Impedance 8Ω

Cross-over Full-range only 1.55kHz

Input connectors  2x NL4, 1 x barrier strip

Enclosure  Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, Perforated, powder-coated steel grille with foam lining.

Mounting and suspension  6 x M8 suspension points, dual angle, 35mm pole-socket

Net weight 31 kg / 68 lbs

Shipping weight 34 kg / 75 lbs

Dimensions

(WxHxD)  420x716x445mm16.5x28.2x17.5in
