QSC PLD4.2

โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.

รหัส : PLD4.2

ยี่ห้อ : QSC

รุ่น : PLD4.2

ราคาปกติ : ~~56,000.00~~ บาท

ราคาพิเศษ : 50,400.00บาท

รายละเอียดย่อ : QSC PLD4.2 เครื่องขยายเสียง 4 channels, 400 watts/ch at 8Ω, 400 watts/ch at 4Ω, 325 watts/ch at 2Ω

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

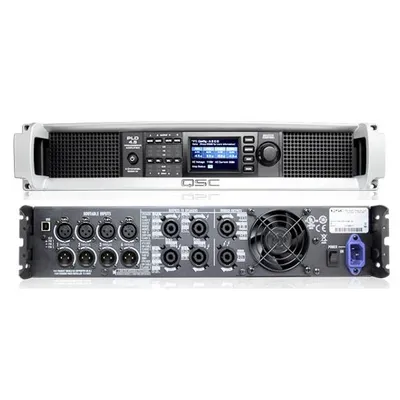

QSC PLD4.2 เครื่องขยายเสียง 4 channels, 400 watts/ch at 8Ω, 400 watts/ch at 4Ω, 325 watts/ch at 2Ω

		PLD4.2	PLD4.3	PLD4.5
Typical Distortion		0.01–0.06%
Maximum Distortion		1.0%
Frequency response		20 Hz–15 kHz ±0.2 dB 20 Hz–20 kHz +0.2/-0.7 dB
Noise: Unweighted Output Unmuted		-101 dB
Noise: Weighted Output Muted		-109 dB
Gain	1.2V	34.0 dB	38.4 dB	38.4 dB
Damping factor		>150
Input impedance		>10 kΩ, balanced or unbalanced
Maximum rms input level	3.9V	12.28 V (+24 dBu)
Maximum rms input level	1.2V	3.88 V (+14 dBu)
Amplifier and load protection		Short circuit, open circuit, thermal, RF protection. on/off muting, DC fault shutdown, active inrush limiting, input current limiting
AC Power Input		4.2: Universal Power Supply 100-132/200–240 VAC, 50–60 Hz 4.3/4.5: Universal Power Supply 100–240 VAC, 50–60 Hz

		PLD4.2		PLD4.3		PLD4.5
		Peak	Continuous	Peak	Continuous	Peak	Continuous
4 Independent Channels A, B, C, D	8Ω	500 W	400 W	900 W	625 W	1200 W	1150 W
	4Ω	700 W	400 W	1400 W	625 W	2000 W	1250 W
	2Ω	625 W	325 W	1200 W	625 W	1600 W	625 W
2 Channel BTL Bridged A+B or C+D Doubles Voltage	8Ω	1200 W	800 W	2400 W	1250 W	4000 W	2250 W
	4Ω	1500 W	600 W	NR*	NR*	NR*	NR*
	2Ω	NR*	NR*	NR*	NR*	NR*	NR*
2 Channel Parallel AB or CD Doubles Current	8Ω	500 W	400 W	1300 W	1150 W	1250 W	1150 W
	4Ω	950 W	800 W	2000 W	1250 W	2400 W	2250 W
	2Ω	1200 W	800 W	2500 W	1250 W	4000 W	2100 W
1 Channel 3CH Parallel ABC Triples Current	8Ω	500 W	400 W	1400 W	1150 W	1400 W	1150 W
	4Ω	950 W	800 W	2400 W	2000 W	2500 W	2400 W
	2Ω	1800 W	1200 W	3500 W	2500 W	4500 W	4100 W
1 Channel Bridged/Parallel AB+CD Doubles Current and Voltage	8Ω	1600 W	1500 W	3500 W	2500 W	4500 W	4200 W
	4Ω	2500 W	1600 W	5000 W	2500 W	7500 W	4200 W
	2Ω	NR*	NR*	NR*	NR*	NR*	NR*
1 Channel 4CH Parallel ABCD Quadruples Current	8Ω	500 W	400 W	1400 W	1150 W	1600 W	1150 W
	4Ω	1000 W	800 W	3000 W	2500 W	3000 W	2300 W
	2Ω	1700 W	1600 W	5000 W	2500 W	5300 W	4200 W

NR* = Not Recommended due to excessive current draw
BOLD = Optimal configuration fo rthe load and channel count

	PLD4.2	PLD4.3	PLD4.5
Controls and indicators (front)	Power • Channel MUTE Buttons • Channel SELECT buttons • Channel input signal and CLIP LED indicators • Channel output and LIMIT LED meters • HOME, ENTER, EXIT, GAIN navigation buttons • Control knob
Controls and indicators (rear)	AC Power Disconnect
Input connectors	Female XLR
Output connectors	NL4

	PLD4.2	PLD4.3	PLD4.5
Dimensions (HWD) inches	3.5 x 19 x 12	3.5 x 19 x 16	3.5 x 19 x 16
Dimensions (HWD) mm	89 × 482 × 305	89 × 482 × 406	89 × 482 × 406
Weight, Net / Shipping	18.5 lb (8.4 kg) / 22 lb (10.0 kg)	21.0 lb (9.5 kg) / 25 lb (11.3 kg)	22.0 lb (10.0 kg) / 26 lb (11.8 kg)
Agency approvals	UL, CE, RoHS/WEEE compliant, FCC Class A (conducted and radiated emissions)
Carton contents	Locking IEC cable, Quick Start Guide, USB cable
