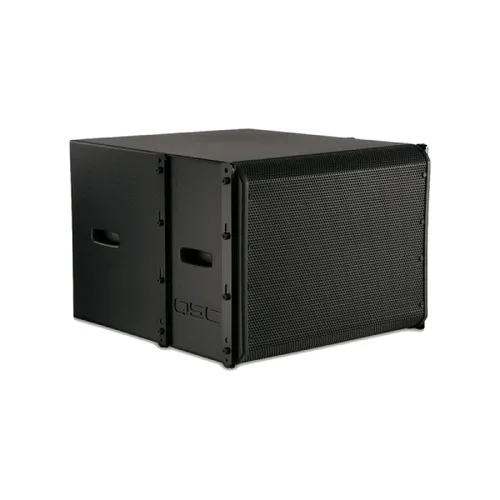

QSC WL118-sw-BK ตู้ลำโพงซับวูฟเฟอร์ 18 นิ้ว 850 วัตต์

 โพสต์เมื่อ : 25 ธ.ค 2567 เวลา 8:34 น.
89



89
รหัส : WL118-sw-BK
ยี่ห้อ : QSC
รุ่น : QSC WL118-sw-BK
ราคาปกติ :  184,000.00 บาท
ราคาพิเศษ :  174,800.00บาท
รายละเอียดย่อ :
18" subwoofer - for use with WL2082-i installation line array, may be ground-stacked or suspended with WL2082-i, integral array hardware, Color - Black.

ราคาพิเศษสอบถามโทร 02-981-0944,080-614-4774,098-565-9747

รายละเอียดทั้งหมด

Features

  • Single 18-inch subwoofer in a bass-reflex enclosure
  • 850 watt continuous power capacity
  • Frequency range down to 29 Hz
  • May be suspended at the top, or behind the WL2082-i array
  • Available in black or white to harmonize with venue décor



SPECIFICATIONSWL118-sw
ConfigurationVented box
Transducers
High Frequency


Low Frequency
--


850 W, 8Ω 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)32 Hz - 200 Hz
Frequency Range (-10 dB)29 Hz - 800 Hz
Nominal Impedance
LF: 8Ω
Sensitivity98 dB
(2.83 V @ 1 m)
Continuous Power Capacity 1



LF: 850 W
Recommended Power

LF: 1750 W
Maximum Output (dB SPL at 1 m)
Continuous / Peak

LF: 128.5 dB / 134.5 dB
Nominal Coverage
Cabinet TypeVented subwoofer
Enclosure Material18 mm Baltic Birch Plywood
FinishAvailable in black (WL118-sw BLK) or white (WL118-sw WHT) paintable
Grille16 gauge powder-coated steel with cloth backing
Connectors2 x NL8 in parallel / 2 x NL4 in parallel
Pin OutsNL8
Pins
1+/1-Sub
2+/2-Pass thru
3+/3-Pass thru
4+/4-Pass thru


NL4
Pins
1+/1-Sub
2+/2-Pass thru


Attachment PointsIntegral, non-adjustable (straight array only)
Dimensions (HWD) inches22.1 x 27.6 x 30.3
Dimensions (HWD) mm562 x 702 x 771
Weight111 lb / 50.4 kg net
121 lb / 55 kg shipping
Accessories AvailableFB2082-i: Fly-bar for WL2082-i, WL118-sw and WL115-sw. Available in black or white.

EB2082-i: Extension bar, allows WL118-sw or WL115-sw to be suspended behind WL2082-i. Available in black or white.

PB2082-i: Pullback bar for WL2082-i. Pulls the bottom of the array back to achieve the desired angle. Available in black or white.

AB2082-i: Angle bracket, allows greater vertical splay between WL2082-i and WL118-sw or WL115-sw enclosures in ground stacked configurations. Available in black. Requires two brackets per array, sold individually.

QRP-KIT-1: Kit of four quick-release pins for use in lieu of included bolts.
