SOUNDVISION FLEXY X F-ONE

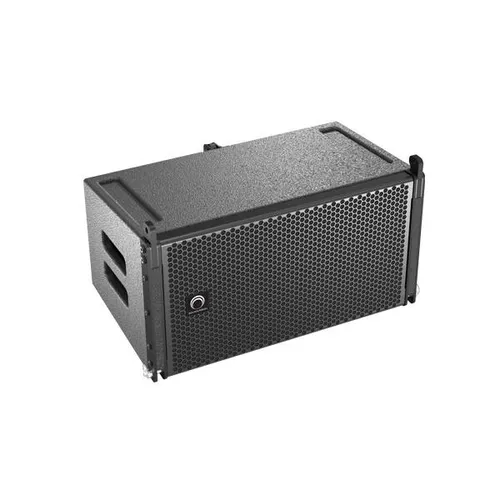

SOUNDVISION FLEXY X F-ONE ตู้ลำโพง 10 นิ้ว10-Inch Passive Line Array Speaker

FLEXY X  is powerful sound Line Array Speaker System,This series adapting to different preferences and scale of applications. With high performance offers various combinations and choices alway herewith a proper solution that meets your need. The true modular design provides FLEXY X series amazing flexibilities to be combined, split and extended freely from 300 people to 8000 people scaled application, from the simplest 2+1 mono to 4-way large system. Benefiting from exceptional analog circuit and D-class switching power technologies, the active product are well recognized for high quality and reliability.

FLEXY X Application

Rigging System

Fixed Installation

Ground Stacked

Main PA

Live Sound & Tour

FEATURE

10-inch 2-way bi-amp passive line array speaker.

Driver high quality with One 3”(1.4” exit) Neodymium (75mm Coil) and One 10” (65mm Coil) Neodymium.

Designed by the right all criteria of Wave front Sculpture Tecchnology (WST).

90° horizontal and 10° vertical  coverage.

Ultra compact and solid enclosure high quality birch plywood.

Finished with superb polyurea paint which features anti-scratch and waterproof.

Applications with rigging system, ground stacked for font fill use or pole-mounted on F-one sa Subwoofer for main PA.

SPECIFICATIONS

MODEL F-ONE

Frequency Response (±3dB) 90 Hz~18 KHz

Frequency Range (–10dB) 80 Hz~20 KHz

Horizontal Coverage 90°

Vertical Coverage 10° (adjustable maximum)

LF Power Rating (AES) 350W @16Ω

HF Power Rating (AES) 80W   @16Ω

Sensitivity (@1W/1m)  LF/HF 103/112 dB

Maximum SPL  LF/HF 128/131 dB

Peak SPL  LF/HF 134/137 dB

Driver LF One 10” (75mm Coil.) Neodymium

Driver HF One 3”(1.4” exit) Neodymium (75mm Coil.)

Connectors 2 Neutrik NL4

Connection Method LF : 1+1- , HF: 2+2-

Enclosure 15mm, 18mm Multilayer Birch Plywood

Grille Black Steel Mesh + Acoustic Transparent Cloth

Finish Black Polyurethane Paint

Riggings 3 Fly Points + Pole Mounts

Dimensions (H x W x D) 279 x 526 x 339 mm

Net Weight 20 kg
