TANNOY CMS501 PI

 โพสต์เมื่อ : 25 ก.ย 2569 เวลา 9:11 น.
12

12



รหัส : CMS501 PI
ยี่ห้อ : TANNOY
รุ่น : CMS501 PI
ราคาปกติ :  6,000.00 บาท
ราคาพิเศษ :  5,300.00บาท
รายละเอียดย่อ :
ลำโพงติดเพดาน Ceiling Monitor Speaker

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

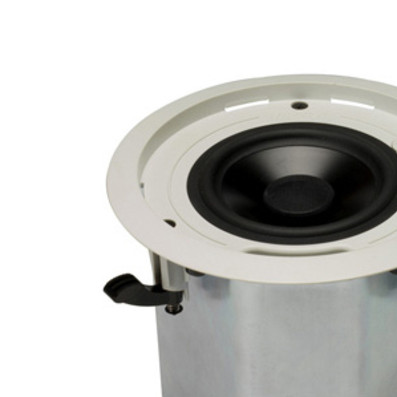

TANNOY CMS501 PI ลำโพงติดเพดาน Ceiling Monitor Speaker

SYSTEM
Frequency Response (-3dB) (1) BM Back can47Hz – 30kHz
Frequency Range (-10dB) (1) BM Back can40Hz – 35kHz
Frequency Range (-10dB) (1) PI Back can41Hz – 35kHz
System Sensitivity (1W @1m) (2)92dB (1W = 2.83V for 8 Ohms)
Nominal Coverage Angle90 degrees conical
Coverage Angle (1kHz to 6kHz)100 degrees
Directivity Factor (Q)5.5 averaged 1kHz to 6kHz
Directivity Index (DI)7.2 averaged 1kHz to 6kHz
Rated Maximum SPLAverage: 112dB
Peak: 118dB
Average: 110dB (with THP60)
Power Handling (3)Average: 90W
Programme: 180W
Peak: 360W
Recommended Amplifier Power180W @ 8 Ohms
Nominal Impedance8 Ohms
Transformer Taps (via front rotary switch)70V: 60W / 30W / 15W / 7.5W / OFF
& Low Impedance operation
100V: 60W / 30W / 15W / OFF
& Low Impedance operation
Crossover2kHz – 2nd order LF, 2nd order HF
(with dynamic HF protection)
TRANSDUCERS
Low Frequency1 x 200mm (8.00″) Dual Concentric™ constant directivity driver with multi fibre paper pulp cone
High Frequency1 x 25mm (1.00″) titanium dome with neodymium magnet system
PHYSICAL
EnclosureBack Can: Zinc plated steel
Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating
Safety FeaturesSafety ring located at rear of enclosure for load bearing safety bond
Clamping DesignMin / Max clamping range: 0.0mm (0.0″) / 20.0mm (0.79″)
Recommended clamp torque: 1.5Nm
Back Can OptionsBlind Mount (BM): Complete with fixed back can
Pre Install (PI): Separate back can for pre installation
Cable Entry OptionsCable clamp & squeeze connector for
conduit up to 22mm
Conduit Knockouts3 Sets of horizontal positions: 19 / 22 / 28mm 0.75 / 0.87 / 1.10″
ConnectorsRemovable locking connector with screw terminals with “loop through” facility
Safety Agency RatingsCE, UL-1480, UL-2043
BM Hole Cutout Diameter295mm (11.61″)
PI Hole Cutout Diameter295mm (11.61″)
DimensionsBezel diameter: 325mm (12.80″)BM model: Front of ceiling to rear of back can 310.50mm (12.22″)
BM model: Front of ceiling to top of safety loop 327.80mm (12.90″)PI model: Front of ceiling surface to rear of speaker unit 118.70mm (4.67″)
PI model: Front of accessory back can bezel to top of safety loop 168.50mm (6.63″)
