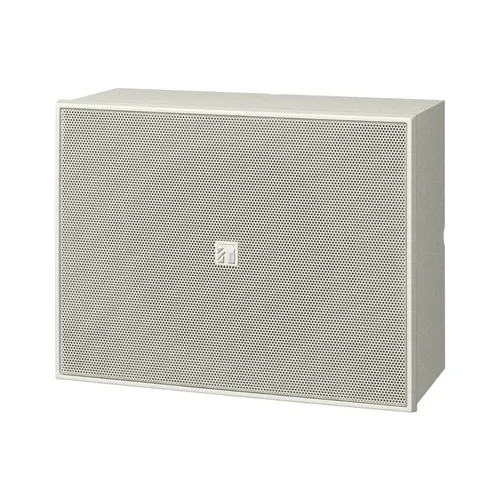

รหัส : TOA BS-678T
ยี่ห้อ : TOA
รุ่น : BS-678T
ราคาปกติ :  1,600.00 บาท
ราคาพิเศษ :  1,360.00บาท
ไฟล์เอกสาร : toa_bs-678t.pdf
รายละเอียดย่อ :
BS-678T wall mount speaker 6W Attenuator ลำโพงตู้ติดผนัง 6 วัตต์สีขาว มีวอลลุ่มปรับเสียงในตัว WALL MOUNT SPEAKER 6W

ราคาพิเศษสอบถามโทร 02-981-0944,080-614-4774,098-565-9747


รายละเอียดทั้งหมด

เป็นลำโพงตู้แบบติดผนัง
- ทนกำลังขยายได้ 6 วัตต์
- มีวอลลุ่มปรับเสียงในตัว
- ตอบสนองความถี่ตั้งแต่ 150-20,000 Hz
- ความดังของลำโพงที่ 1 วัตต์ / 1 เมตร ไม่น้อยกว่า 94 dB
- ขนาดของลำโพงไม่น้อยกว่า 16 เซนติเมตร
- มี Matching Transformer 100 V ในตัว

TOA BS-678T ลำโพงตู้ติดผนัง 6 วัตต์สีขาว มีวอลลุ่มปรับเสียงในตัว WALL MOUNT SPEAKER 6W,ATT

BS-678T wall mount speaker 6W Attenuator  ซึ่งตู้ที่ทำจากไม้สามารถติดตั้งในแนวตั้งหรือแนวนอน สามารถใช้สายไฟภายในกำแพงที่ซ่อนอยู่หรือสายไฟแบบสัมผัสเพื่อการเชื่อมต่อสายลำโพง โครงสร้างลำโพงที่อนุญาตให้ติดตั้งกับผนังโดยตรงด้วยสกรูจะช่วยป้องกันไม่ให้ลำโพงหล่นได้ง่ายแม้จะมีแรงภายนอก สามารถเปลี่ยนอิมพิแดนซ์อินพุตได้อย่างง่ายดายโดยการเปลี่ยนตำแหน่งแทปของหม้อแปลง ชุดลำโพงกรวยคู่ 6 นิ้วในตัวสองตัวให้เสียงคุณภาพสูง ขั้วต่ออินพุทชนิดพุชทำให้การเชื่อมต่อสายเคเบิลเป็นเรื่องง่ายและทำให้สามารถเดินสายได้ BS-678T มี attenuator ในตัวและสามารถเชื่อมต่อกับระบบ 2 สายหรือ 3 สาย

The BS-678T, of which cabinet is made of wood, can be installed in a vertical or horizontal orientation. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. Two built-in 6-inch double cone speaker units deliver high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring. BS-678T have a built-in attenuator and can be connected to a 2-wire or 3-wire system.

Specification



Rated Input6 W (100 V line), 3 W (70 V line)
Rated Impedance100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response150 Hz - 20 kHz (peak -20 dB)
Speaker Component16 cm (6") double cone-type
Applicable Cable600 V vinyl-insulated cable (IV wire or HIV wire)
Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
ConnectionPush-in connector (bridging terminal)
AttenuationOFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB)
FinishBaffle: HIPS, off-white (RAL 9010 or equivalent color)
Cabinet: Particle board with pvc sheet, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color)
Dimensions250 (W) × 190 (H) × 110 (D) mm (9.84" × 7.48" × 4.33")
(excluding volume control knob)
Weight1.7 kg (3.75 lb)
AccessorySpeaker mounting screw (4 × 35 (0.16" × 1.38")) …2
