TOA H-1 EX WH

TOA H-1 EX ลำโพงติดเพดาน 30 วัตต์ 2-Way Flush-Mount Speaker System

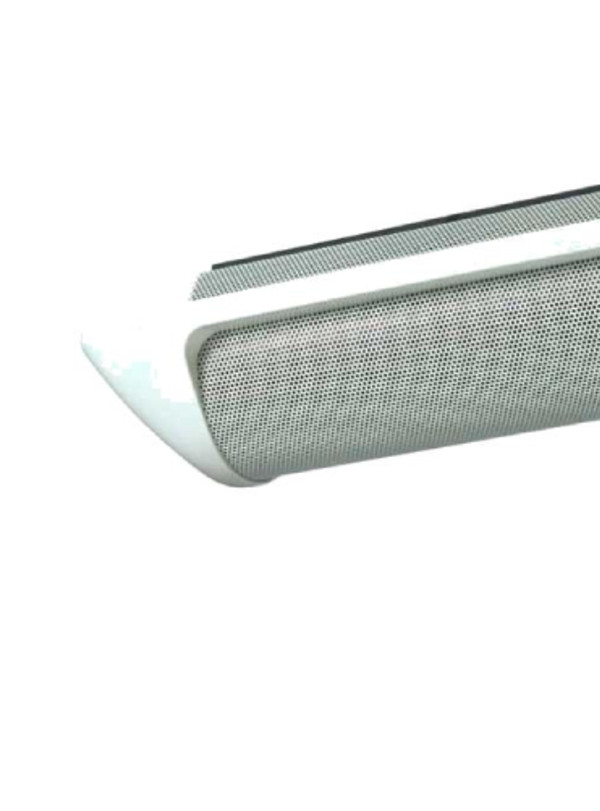

The H-1 is a cylinder-shaped, small flush-mount 2-way speaker that ensures quality sound reproduction. The mounting angle for its enclosure can be adjusted for up to 90 degrees.

H-1 2-Way Flush-Mount Speaker System

H-1

Specification

• Enclosure Type Sealed type
• Power Handling 90 W (continuous program/4 Ω)
• 30 W (continuous pink noise/4 Ω)
• Rated Input 12 W (16 Ω, high impedance)
• Rated Impedance 4 Ω, 16 Ω
• 100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
• 70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
• Output Sound Pressure Level 85 dB (1 W, 1 m) at installation in 1/2 free sound field
• (Measured by installing the unit in the center of a wall.)
• Frequency Response 120 Hz - 20 kHz
• Speaker Component Low frequency: 8 cm × 5 cm cone-type
• High frequency: Balanced dome-type
• Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
• Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No. 24 - 14 equivalent)
• Finish Cover: Fire-resistant ABS resin, white, paint
• Punched net: Steel plate, white, paint
• Adapter frame: Stainless steel
• Dimensions 312 (W) × 126 (H) × 90 (D) mm
• Weight 1.5 kg (including adapter frame)
• Accessory Adapter frame ……1, Mounting screw (M4 × 25) ……4, Hole pattern paper ……1
