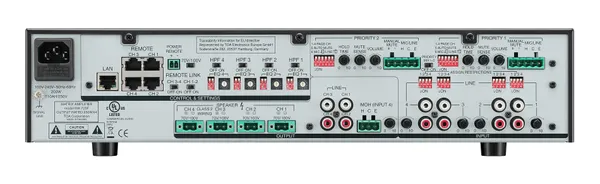

TOA MA-725F Matrix Mixer/Amplifier 1350 W (rated output), 200 W

FEATURES

• 4 stereo-summing line inputs with matrix routing to 4 amplifier outputs.

• Each line input has input level adjustment and assign restriction setting for

each output to prevent routing selection.

• 2 priority MIC/LINE inputs with different priority level for paging or other

pre-recorded source which can override the selected line input on assigned

output channels.

• Each priority input also has input level, mute sensitivity and mute hold

time adjustments.

• Each output channel is equipped with 250W Class-D amplifier at

70V/100V output voltage selectable with independent DSP preset selection

and 50Hz HPF for the protection of connected speakers.(*)

• Selectable DSP preset selections include general EQs, like Loudness

curves, TOA speaker EQs and crossover settings to be used with subwoofers.

• Each output channel also has auxiliary line output to deliver audio to other

systems.

• This matrix doesn’t need any PC programming or network connection for

setup at site. (Maintenance purpose only)

• Optional wall mount remote control, WP-700 can be connected via CAT-5

straight LAN cable to control the line input selection and output volume of

each output.

• Class-D amplifier has various protection features against over current,

high temperature and short circuit of speaker lines at each output channel.(*)

• Power supply with Power Factor Correction for reduced power

consumption and world-wide operating range.(*)

• Option: WP-700-AM Wall Panel

(*) MA-725F only

*0dB=1V

SPECIFICATIONS MA-725F-AM MM-700F-AM

Power Source 100 - 240V AC, 50/60Hz

Power Consumption 1350 W (rated output), 200 W (based on cULus standards), 42.5 W

(idle), 22 W or less (stand-by) 9 W or less

Frequency Response 20Hz - 20 kHz (-3 dB / + 1 dB, LPF OFF) 20Hz - 20 kHz (-3 dB / + 1 dB)

Total Harmonic Distortion

1% or less, at 1kHz, rated output

Certifications cULus 60065, EN60065, EN55032, EN55020, FCC part15 class A

Input Priority 1-2: Mic -60 dB/Line -10 dB* selectable, 2.2 kΩ, electronically-balanced, removable terminal block

Line In 1-4: -10 dB*, 10 kΩ, unbalanced, 2 RCA jacks (Stereo summing)

Output

Speaker 1-4: 70 V (20 Ω), 100 V (40 Ω), removable terminal block --

Line Out 1-4: 0 dB*, 600 Ω, unbalanced, RCA jack 0 dB*, 600 Ω, unbalanced, removable terminal block

MOH: 0 dB*, 600 Ω, transformer balanced, removable terminal block

DSP Preset 16 presets in 4 banks at each output channel, selectable

S/N Ratio Mic: 60 dB* or more, Line: 75 dB* or more (A-weighted)

Muting Manual mute / Automatic mute

Mute Hold Time 50ms - 10 seconds, adjustable

Priority Level PRIORITY 1 > PRIORITY 2 > LINE 1-4

Control

Power: ON/OFF switch, Power remote terminal

Priority 1-2: MIC/LINE selector switch, Gain control, Assign switch, Auto mute switch, Mute sense control, Manual mute terminal, Mute hold time control,

Priority mix switch

Line In 1-4: Gain control, Assign restriction switch

Output 1-4:

LINE IN 1-4 selector switch, Output gain control, 70V/100V selector

switch, HPF switch, DSP bank selector switch, DSP preset selector

switch

LINE IN 1-4 selector switch, Output gain control, DSP bank selector

switch, DSP preset selector switch

Remote 1-4: Remote control connector (RJ-45), Remote link switch

Operating Temperature 0 to 40 °C degree (32 to 104 °F)

Operating Humidity 35% to 80%RH (no condensation)

Finish Panel: Aluminum, hair line, black; Case: Steel plate, black, paint

Dimension 420 (W) x 107.6 (H) x 350 (D) mm (16.54" x 4.24" x 13.78")

Weight 7.6 kg (16.7 lbs) 5.7 kg (12.3 lbs)

Accessories Power cord (2m (5.65ft)) x1, Removable terminal plug (5 pins x 2, 3 pins x 1, 2 pins x 4); Rack mounting bracket x 2, Bracket mounting

screws x 4, User manual x 1

Option Remote Control Panel : WP-700-A
