TOA SR-S4L

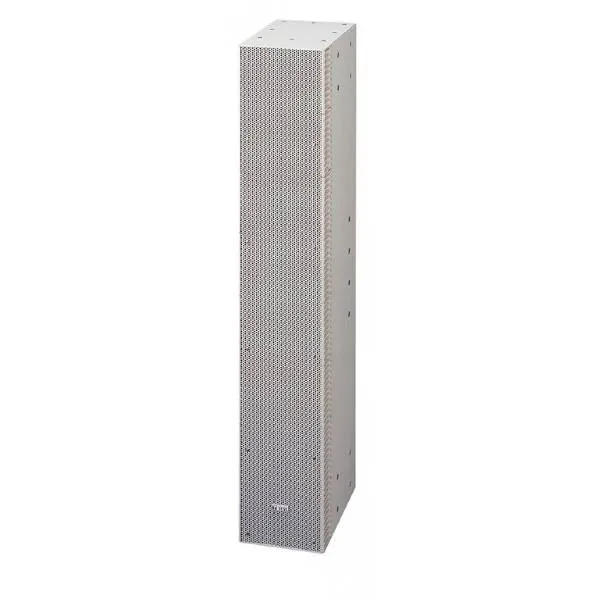

TOA SR-S4L 2-Way Line Array Speaker System

The SR-S4L is a two-way line array speaker ideal for long distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching Transformer.

Specification

• Enclosure Bass-reflex type
• Power Handling Capacity Continuous program: 600 W (single-amp mode)
• Low 240 W, High 240 W (bi-amp mode)
• Rated Impedance 8 Ω (single-amp mode)
• Low 8 Ω, High 8 Ω (bi-amp mode)
• Sensitivity 94 dB (1 W, 1 m)
• Frequency Response 70 - 20,000 Hz (when using DP-0206* (option))
• Crossover Frequency 3,500 Hz
• Directivity Angle Horizontal: 90゜, Vertical: 0゜ (within the range of speaker height)
• Speaker Component Low frequency: 10 cm cone-type × 8
• High frequency: 2.5 cm balanced dome-type × 24
• Input Connector M5 screw terminal, distance between barriers: 12.2 mm
• and Neutrik NL4MP × 2
• Finish Enclosure: MDF, white, paint
• Front grille: Punched steel plate, white, acrylic paint
• Dimensions 160 (W) × 895 (H) × 255 (D) mm
• Weight 16 kg
• Accessory Bi-amplifier drive rating label …1, Bi-amplifier drive input indication label …1
• Option Matching transformer: MT-S0601, Extension plate: SR-EP4,
• Flying bracket: SR-FB4, Wall mounting bracket: SR-WB4,
• Wall tilt bracket: SR-TB4, Stand adapter: SR-SA4,
• Protection pad: SR-PP4, Floor stand: SR-FS4,
• Digital processor: DP-0206*
• Digital Mixer: D-901
• Digital Mixing Processor Unit: D-2008SP
