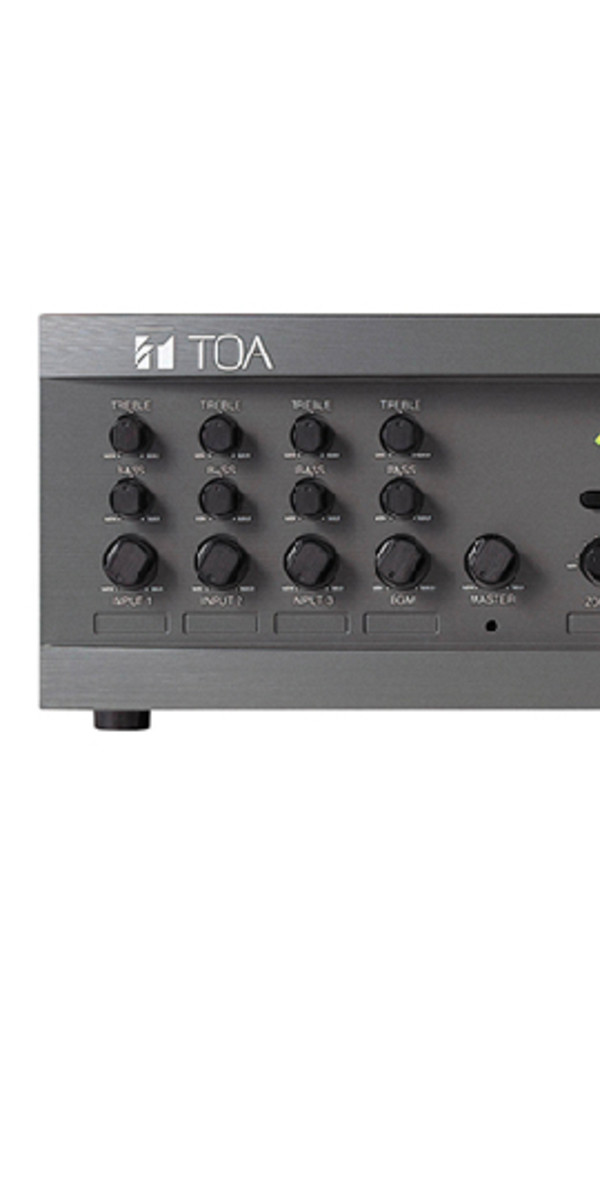

| Power Requirement | AC mains, 50/60 Hz DC: 24 V |
| Output | 240 W |
| Frequency Response | 50 - 16,000 Hz |
| Distortion | Less than 1% |
| Signal-to-Noise Ratio | More than 60 dB |
| Tone Control | Bass: 100 Hz ±10 dB, Treble: 10 kHz ±10 dB (Inputs 1 - 3 and BGM individually adjustable.) |
| Remote Microphone/Extension Amplifier Connection | Two RJ45 female connectors Maximum distance: 800 m |
| Audio Input | |
| Inputs 1 ~ 3 | -60 dB*1 [MIC]/-10 dB*1 [LINE] (switchable), 600 Ω, electronically balanced*2, combined XLR type connector (female)/ 1/4" phone jack (Only Input 1 is additionally (female)/ 1/4" phone jack (Only Input 1 is additionally equipped with DIN connector*3.) |
| Telephone Paging Input | Push-in terminal block
-10 dB*1, 10 k Ω, electronically-balanced*2
Control : No-voltage make contact input |
| BGM 1 - 2 | -20 dB*1, 10 k Ω, RCA pin jack, monaural |
| Power Amplifier Input | 0 dB*1, 10 k Ω, RCA pin jack |
| External Speaker Line Input | 100 V line, for All-Zone Broadcast |
| Audio Output | |
| Speaker Output | 41 Ω (100 V line, volume control in maximum position), Removable terminal block with screw terminals. |
| Speaker Zone Control | 5-zone selector with attenuator |
| Direct Speaker Line Output | Direct output from the power amplifier output transformer, |
| Line Output | 0 dB*1, 10 k Ω, RCA pin jack |
| Recording Output | 0 dB*1, 10 k Ω, RCA pin jack |
| Preamplifier Output | 0 dB*1, 10 k Ω, RCA pin jack |
| Control Inputs 1 - 3 | For controlling Inputs 1 - 3, Push-in terminal block
No-voltage make contact. |
| Control Input and Output | Control Input and Output
Input : No-voltage make contact input
Output : Open collector output
(1) External control input
Activation of messages for an optional Voice Announcement Board*4
Activation of power
Activation and stop of Emergency Broadcast
Unit's broadcast cutoff (when activated by an external emergency equipment)
(2) Status output
Irregularity of communications with the Remote Microphone and an expansion amplifier
AC power condition
DC power condition
Irregularity of the sound source of the Voice Announcement board
Stop of the unit's broadcast |
| External Attenuator Control Output | Removable terminal block with screw terminals, relay, no-voltage make contact output, transfer type |
| Surveillance Input and Output*5 | 25-pin female D-sub connector
Input : No-voltage make contact input
Output : Open collector output |
| Power Output | 24 V DC |
| Chime Tone | Built-in chime:
2-tone chime/2-tone chime(fast repeat)
4-tone chime (Up)/Single-tone chime/4-tone chime (Up & Down)/Gong/off |
| Finish | Panel: ABS resin
Case: Steel plate painted |
| Dimensions | 419 (W) × 143.3 (H) × 356.2 (D) mm |
| Notes | *1 0 dB = 1 V
*2 Can be transformer-balanced with the addition of an optional IT-450 input transformer.
*3 For connection of the Paging Microphone with remote control switch.
*4 An optional EV-200 Voice Announcement Board is required.
*5 An optional SV-200M Surveillance Board is required. |
