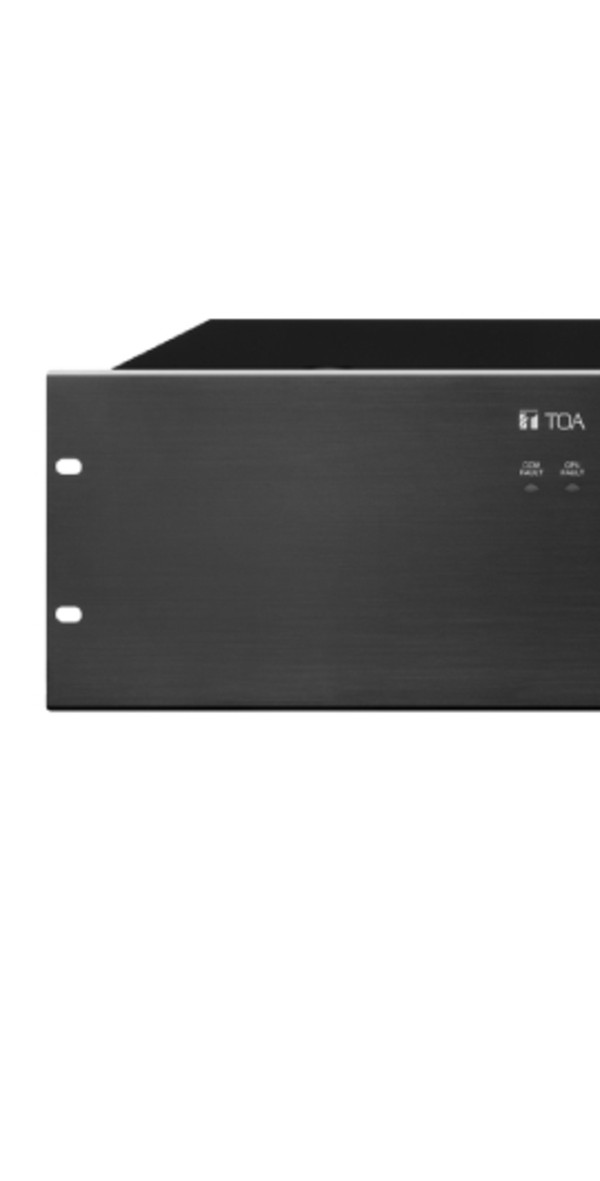

TOA VM-3360E เครื่องขยายเสียง VM Extension Amplifier 360W VM-3360E VM Extension Amplifier 360W VM-3360E The VM-3360E is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures. Specification | Power Source | 230 V AC, 50/60 Hz | | Power Consumption | 850 W (with rated output signal), 380 W (according to EN60065) | | Rated Output | 360 W | | Frequency Response | 50 Hz - 20 kHz, ±3 dB (at 1/3 rated output) | | Distortion | 0.7 % or less (at rated output, 1 kHz) | | S/N Ratio | 85 dB or more | | Input | External amplifier input: 100 V line, removable terminal block (14 pins) | | Output | Speaker output 1 - 2: Max. (360 W) per output
Speaker output 3 - 6: Max. (120 W) per output
Speaker output 1 - 6: Total within 360 W, removable terminal block (14 pins)
Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier,
removable terminal block (16 pins) | | VM Link | Input: Connecting the VM-3240VA or VM-3360VA, RJ45 female connector
Output: Connecting the VM-3240E or VM-3360E, RJ45 female connector
Maximum distance: 800 m (874.89 yd)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) | | EXT PA Link | Connecting the VP-2421, RJ45 female connector
Maximum distance: 5 m (16.4 ft)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) | | General Control | Input 1 - 8: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, removable terminal block (14 pins)
Output 1 - 8: Isolated open collector output, withstand voltage: 30 V DC,
operating current: 10 mA or less, removable terminal block (14 pins) | | Emergency Control | Input 1 - 5: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, RJ45 female connector
Input 6: Isolated voltage input, Inactive: -24 V ±20 %, Active: +24 V ±20 %,
RJ45 female connector
Status out: Relay contact output, withstand voltage: 40 V DC,
operating current: 2 - 300 mA, RJ45 female connector | | ATT Control | Relay contact 1-6, 125 V AC or 30 V DC, total under 5 A,
removable terminal block (16 pins) | | Power Input/Output | Power in: Connecting the VX-2000DS only (operating range: 20 - 40 V DC)
PS out: 28 V DC/24 A
M4 screw terminal, distance between barriers: 11 mm (0.43") | | DC24V Output | 24 V DC, Maximum feeding current 0.3 A | | Ds Link | Connecting the VX-2000DS, RJ45 female connector
Maximum distance: 5 m (16.4 ft)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) | | Operating Temperature | -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F) | | Operating Humidity | 5 % to 95 %RH (no condensation) | | Finish | Panel: Aluminum, hairline, black
Case: Surface-treated steel plate, black, paint | | Dimensions | 482 (W) × 132.6 (H) × 407 (D) mm (18.98" × 5.22" × 16.02") | | Weight | 19 kg (41.89 lb) | | Accessory | Power cable (2 m (6.56 ft)) …1, Link cable (3 m (9.84 ft)) …2,
Plastic foot …4, Plastic foot mounting screw …4,
Removable terminal plug (14 pins) …3, Removable terminal plug (16 pins) …1 |
|
