TOA VM-3360VA
โพสต์เมื่อ : 25 พ.ย 2567 เวลา 0:50 น.
รหัส : VM-3360VA
ยี่ห้อ : TOA
รุ่น : VM-3360VA
ราคาปกติ : 95,910.00 บาท
ราคาพิเศษ : 81,520.00บาท
เว็บไซต์เกี่ยวข้อง : http://www.toa-corp.co.uk/asp/catalogue/products.asp?linkid=235&prodcode=VM-3360VA
ไฟล์เอกสาร : toa_vm-3360va_.pdf
รายละเอียดย่อ :
TOA VM-3360VA 360W System Management AmplifierSampling frequency: 48kHz A/D D/A CONVERTER: 24bit
ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944
รายละเอียดทั้งหมด

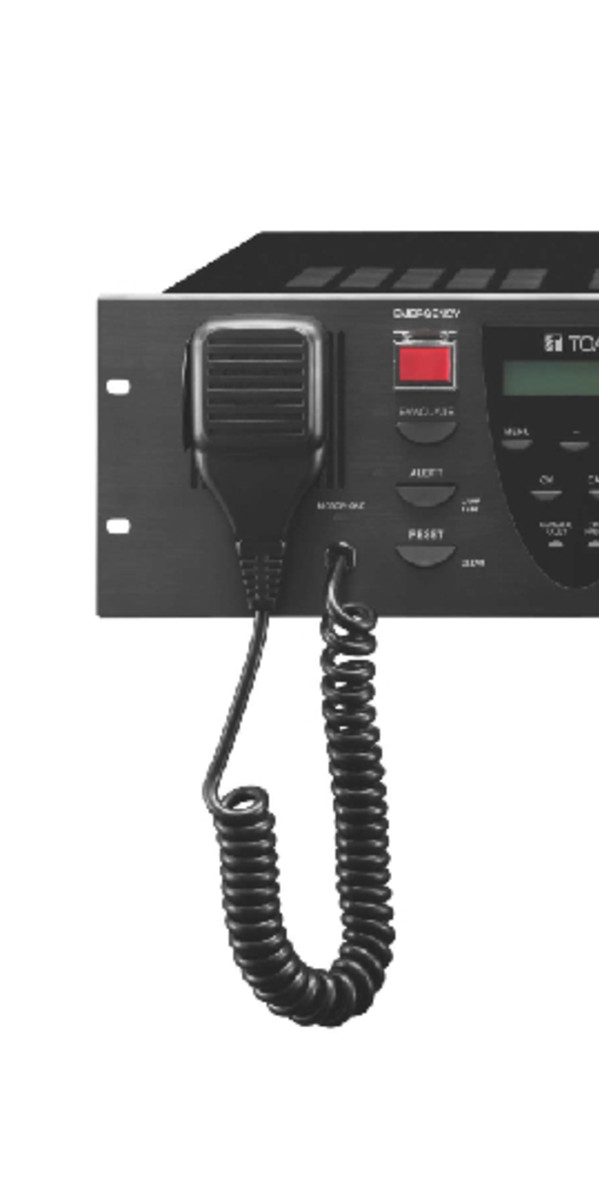

TOA VM-3360VA Voice Alarm System Amplifier เครื่องขยายเสียง 360 วัตต์
360W System Management Amplifier
| Specification | |
|---|---|
| Power Source | AC mains, 50/60 Hz DC: 24 V DC |
| Power Consumption | 850W |
| Rated Output | 360W |
| Frequency Response | 50 – 20,000 Hz, ±3dB (at 1/3 rated output) |
| Distortion | Under 0.8% (at rated output, 1kHz) |
| Signal-to-Noise Ratio | Over 85dB |
| Audio Input/Output Characteristic | Sampling frequency: 48kHz A/D D/A CONVERTER: 24bit |
| Input | Input 1 – 3 : -50 dB (MIC)/-10dB (LINE) (changeable) 600Ω, electronically balanced combined XLR connector (female)/phone jack Input 4: -50 dB (MIC)/-10 dB (LINE) (changeable) 600Ω, electronically balanced plug in screw connector BGM 1 – 2 : -10 dB, 10kΩ RCA pin jack External AMP Input: 100V Line plug in screw connector |
| Output | Speaker output 1 – 2 : max (360w) per output Speaker output 3 - 6 : max (120w) per output Total with in 360W Plug-in screw connector Direct output : Direct output from internal or external amplifier Plug-in screw connector Recording output BGM / Paging : 0dB, 10kΩ, RCA pin jack |
| RM Link 1.2 in | 2 RJ45 female connector for connecting the RM-300MF/RM-200M Remote Microphone. Maximum distance: RM1.2 Total 800 m Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| Network I/F | RJ45 female connector for switching hub or PC 10 BASE-T/100 BASE-TX Circuit (Selectable by automatic negotiation) Maximum distance: 100m between this unit and a switching hub or PC Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| VM Link | RJ45 female connector for connecting the VM-3240E or VM-3360E Maximum distance : 800 m Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| EXT PA Link | RJ45 female connector for connecting the VP-2241 or VP-2421 Maximum distance : 5 m Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| General Control In: 1 – 8/Out: 1 – 8 | Plug-in screw connector Input : No-Voltage make contact input, open voltage: 24V DC, short-circuit current: under 1 mA Output : Isolated open collector output, withstand voltage: 30V DC, operating current: under 50 mA |
| Emergency Control In: 1 – 6/Status out | RJ45 female connector Input 1 – 5 : No-Voltage make contact input, open voltage : 24V DC, short-circuit current: under 2 mA Connection resistance to make the function: Inactive; 9.4kΩ ±5%/Active; 4.7kΩ ±5% Input 6: Isolated voltage input: Inactive; -24V ±20%/Active; +24V ±20% Status out: Relay contact output, withstand voltage: 40V DC, operating current: 2 – 300mA |
| ATT Control | Plug In connector, relay contact, 30V DC, 125V AC 5A (AC/DC) |
| Power In/Out PS Out/DC Power In | M4 Screw terminal distance between barriers 11 mm This connector for connecting the VX-2000DS only DC 28V/30A (operating range: 20 - 40V DC) |
| DC24V Output | 24V DC ±10% Maximum feeding current 0.4A |
| DS Link | RJ45 female connector for connecting the VX-2000DS Maximum distance: 5 m Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| Dimensions | 482 (W) x 132.6 (H) x 460 (D)mm |
| Weight | 19kg |
| Option | Input transformer: IT-450 |
